1/2" ISO Hydraulic poppet Couplings

Details & Specs

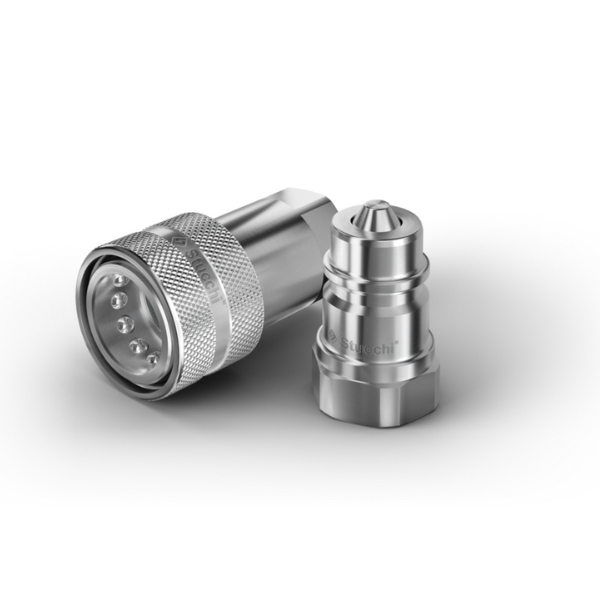

1 x Set ½" ISO Hydraulic Couplings - Genuine Stucchi

These high performance ISO Poppet couplings are designed for use on auxiliary circuits on tractors, skid steer & track loaders, excavators, machinery attachments and all types of agricultural & construction equipment.

These couplings are used by most major OEM brands and compatible with major brands like Stucchi, Parker, Faster, Eaton & Hansen and much more...

Package Includes

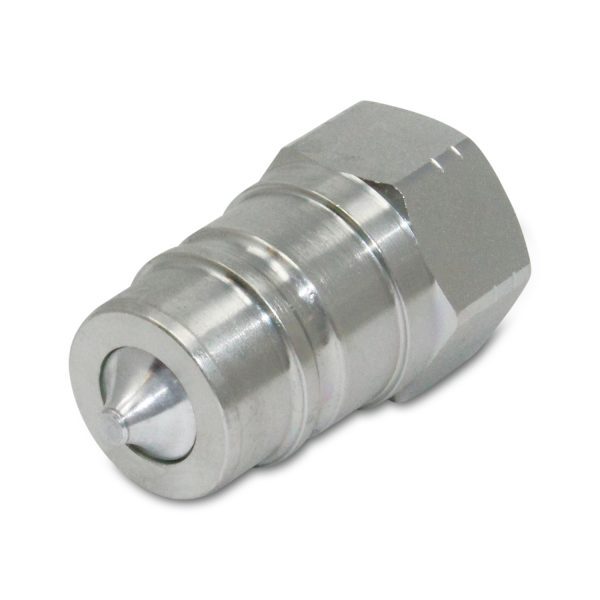

1 x ½" Male ISO Poppet Coupling (½" BSP Female Threaded Connection)

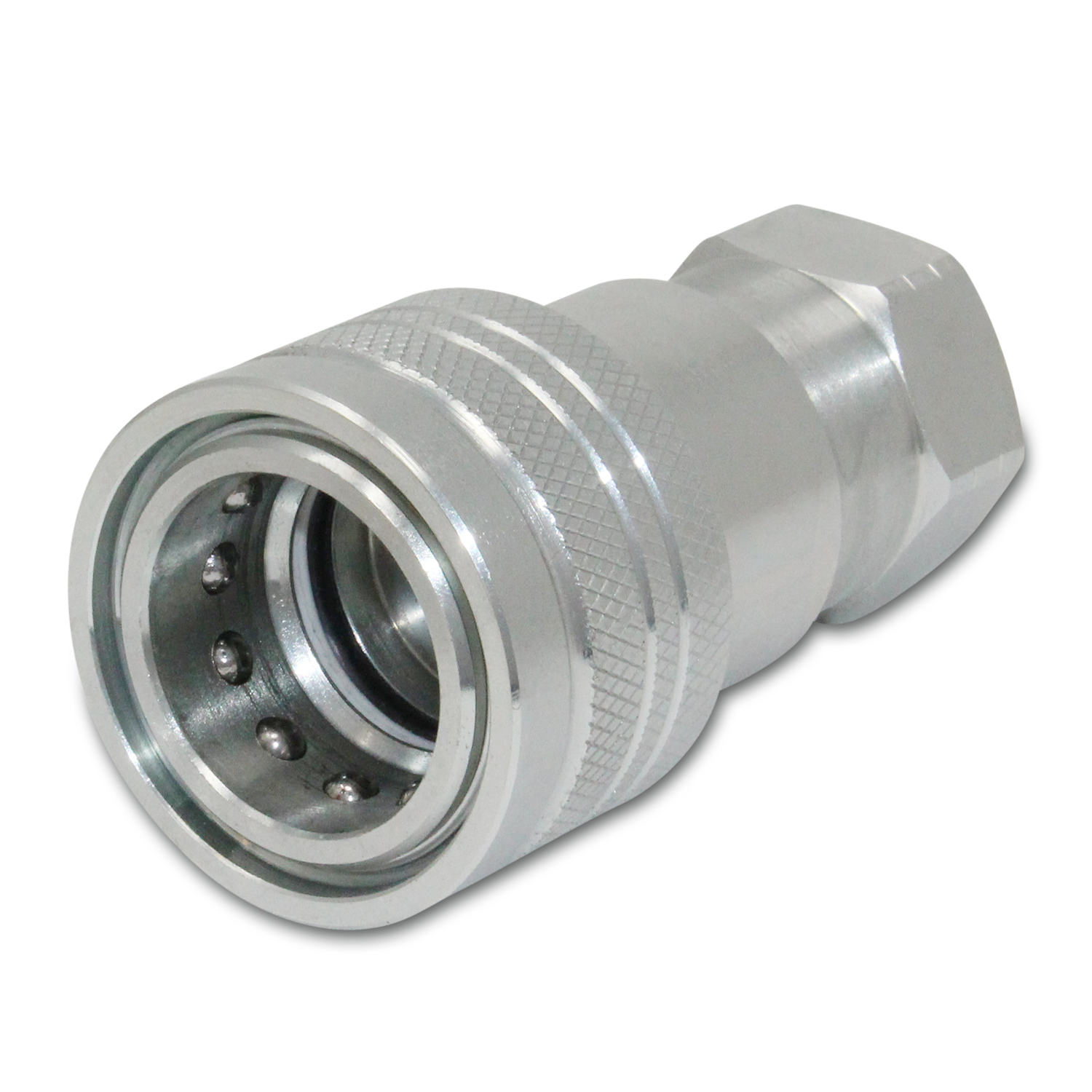

1 x ½" Female ISO Poppet Coupling (½" BSP Female Threaded Connection)

Specifications:

½" BSP Female Threaded Connection

Flow rate: 15-80 LPM

Features:

Zinc Plated, heat treated carbon steel - Nitrile o ring seals with PTFE backup rings

Positive, quick connection ensured by the snap together locking ball system

When connected the male and female halves can rotate, even under pressure, avoiding stress on hoses

Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop

Poppet valve seals have shockproof protective edges

Industry Standard

Couplings Conform to ISO 7241-1 Series A

Please enquire if you have any further questions about your suitability

Please dont hesitate to contact us if you have any further questions or queries.

Specifications

SKU	CIS-12
Brand	Stucchi
Shipping Weight	1.0000kg
Shipping Width	0.100m
Shipping Height	0.160m
Shipping Length	0.125m
Shipping Cubic	0.002000000m3
Unit Of Measure	ea
