3/4" BSP Hydraulic Flat Face Couplings - Stucchi (M-FIRG34BSP-F-FIRG34BSP)

Details & Specs

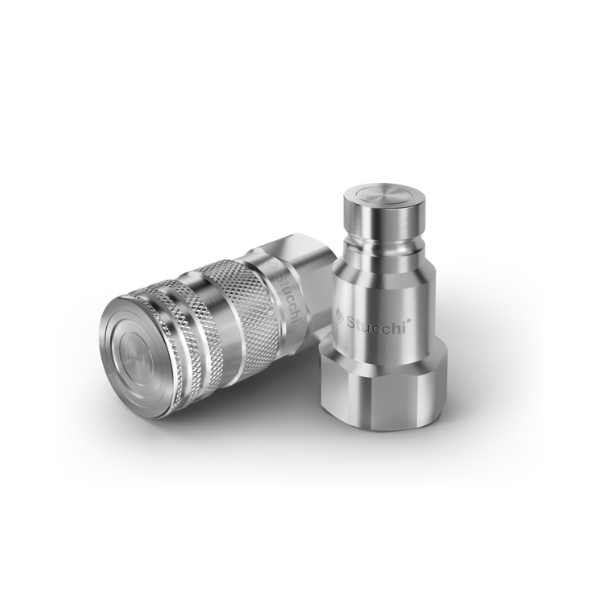

1 x Set of Genuine Stucchi ¾" Male & Female Hydraulic Couplings (Made in Italy)

The Stucchi FIRG series of high performance Flat Face couplings are designed for use on auxiliary circuits on excavators, skid steer & track loaders, machinery attachments and all types of construction & agricultural equipment.

These couplings are used by most major OEM brands and compatible with major brands like Parker, Faster, Eaton & Hansen and much more...

Package Includes

1 x M-FIRG34 BSP - ¾" Male Flat Face Coupling (¾" BSP Female Threaded Connection)

1 x F-FIRG34 BSP - ¾" Female Flat Face Coupling (¾" BSP Female Threaded Connection)

Specifications:

¾" BSP Female Threaded Connection

Flow rate: 20-150 LPM

Operating Temperature: -20 to 100 Degrees

Operating Pressure: Up to 350 bar

Coupling Body Size - 1/2" / Tip 24.5mm (Also avaliable in 5/8" & 3/4")

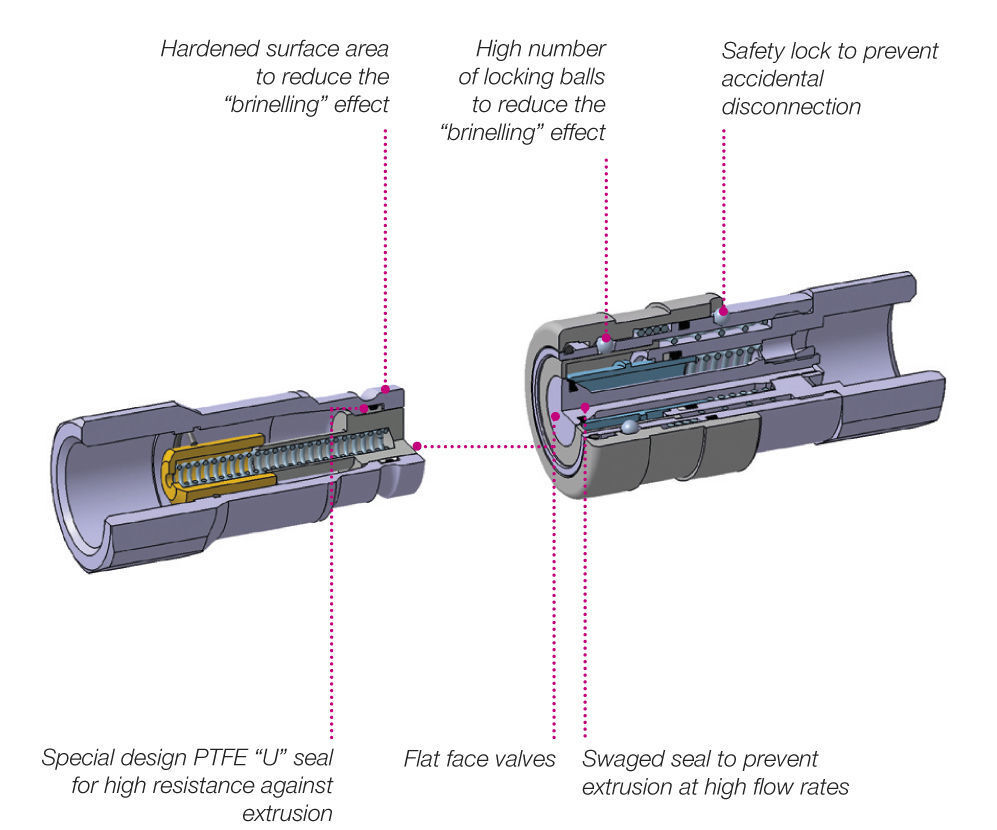

Features:

Flat Face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit

Minimal fluid spillage during connection & disconnection

Minimal air intrusion during connection

Locking sleave prevents accidental disconnection and damage

Industry Standard

Couplings Conform to ISO 16028

Please enquire if you have any further questions about your suitability

Please dont hesitate to contact us if you have any further questions or queries.

Specifications

SKU	M-FIRG34BSP-F-FIRG34BSP
Brand	Stucchi
Shipping Weight	1.2000kg
Shipping Width	0.220m
Shipping Height	0.070m
Shipping Length	0.160m
Shipping Cubic	0.002464000m3
Unit Of Measure	ea
