DESCRIPTION

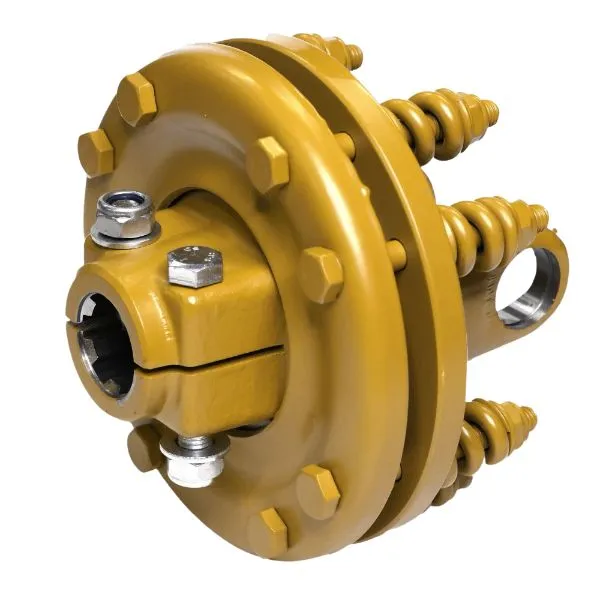

Bare Co Series 4 Yoke Type Safety Clutch

Bare Co Yoke Type Disk Safety Clutches mount directly to tractor PTO universal joints to protect drivelines, gearboxes and implements from shock loads. They come in disk sizes ranging from 150mm (6-inch) to 200mm (8-inch), spanning 2-to-6 friction plates, and handling torque ratings from roughly 467 Nm up to 2,170+ Nm (35HP to 240HP)

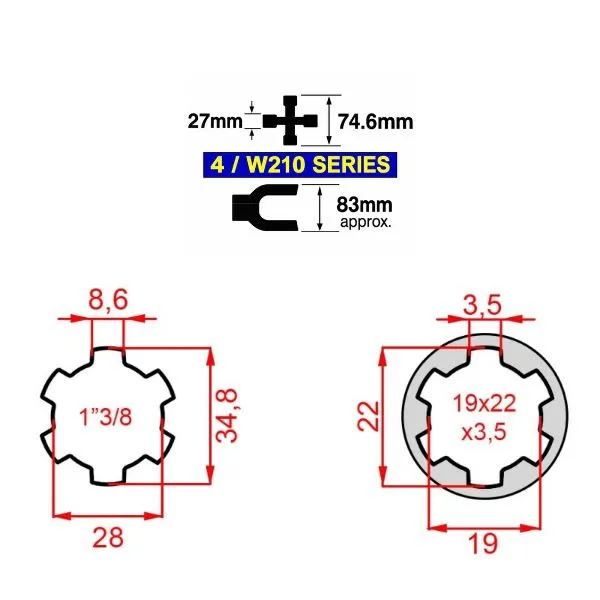

  • 1 3/8" 6 Spline Shaft
  • 180mm / 7" Diameter
  • Torque 467NM (340 ft-lb)
  • Spring Length: 33mm / 1.3"
  • Plates: 2
  • 35HP @ 540 RPM
  • 56HP @ 1000 RPM
  • Bare-Co Series 4 / W210



FEATURES

Bare Co Series 4 Yoke Type Safety Clutch

Bare Co Yoke Type Disk Safety Clutches mount directly to tractor PTO universal joints to protect drivelines, gearboxes and implements from shock loads. They come in disk sizes ranging from 150mm (6-inch) to 200mm (8-inch), spanning 2-to-6 friction plates, and handling torque ratings from roughly 467 Nm up to 2,170+ Nm (35HP to 240HP)

  • 1 3/8" 6 Spline Shaft
  • 180mm / 7" Diameter
  • Torque 467NM (340 ft-lb)
  • Spring Length: 33mm / 1.3"
  • Plates: 2
  • 35HP @ 540 RPM
  • 56HP @ 1000 RPM
  • Bare-Co Series 4 / W210

Product Details

SPECIFICATIONS

SKU AK421090
Brand BARE-Co
Shipping Weight 9.1300kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
