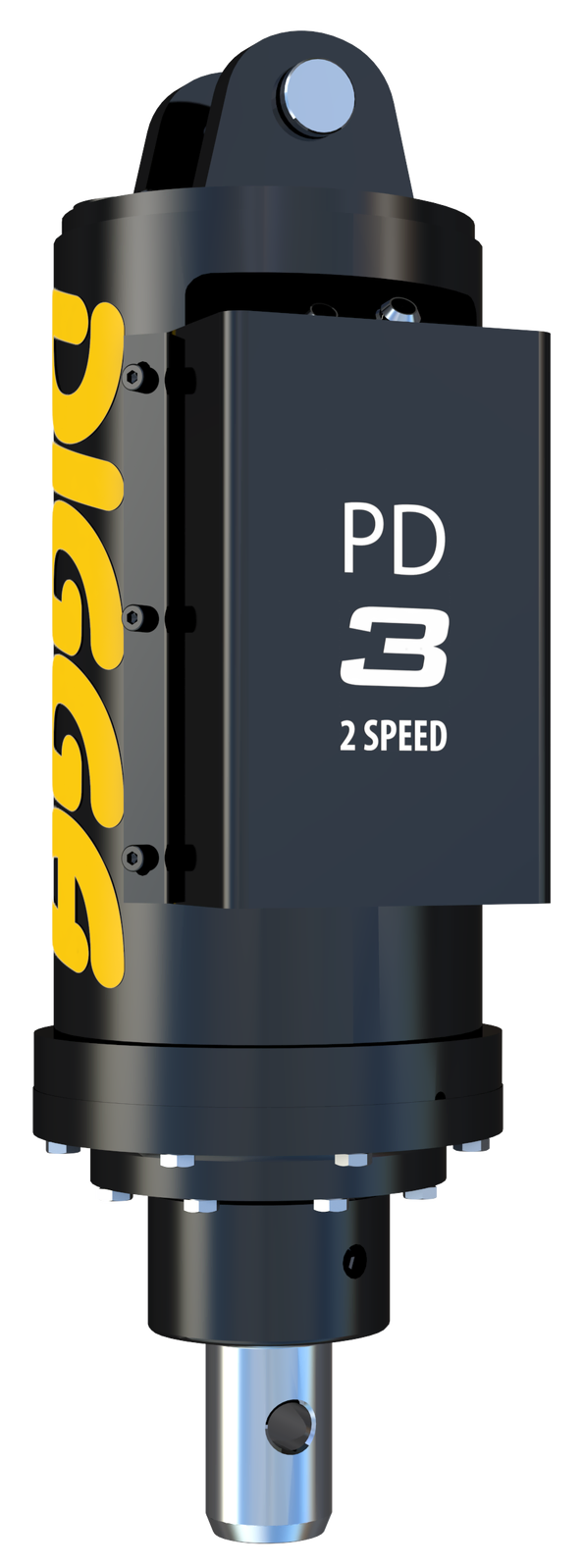

Digga PDT3 2 Speed Auger Drive

Digga's 2 speed drilling auger drives for standard flow machines have been designed for a wider range of applications. Offering a high speed, low torque setting for the smaller auger jobs when you need that extra RPM, and low speed, high torque for when you really need to grind out that larger diameter hole. It's like having 2 drive units in 1.

Two speed drives suit excavators & skid steer loaders, truck cranes, wheeled loaders, and backhoes with flows between 20 and 75 lpm.

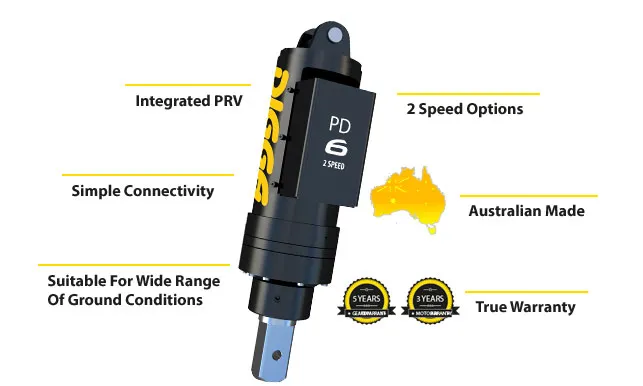

  • Improved motor design & performance with 2 Speed options:
  • Low speed - High torque for large holes
  • High speed - Low torque for smaller holes
  • Suitable for a wide range of ground conditions:Soft loose soils, hard soils, and rocky conditions
  • Integrated PRV (Pressure Relief Valve)
  • Simple electrical connection, 12 or 24 volt coil, just requiring connection
  • Optional joystick switches, floor mounted switches & cigarette plugs available pre-wired to suit
  • Includes Hydraulic Hoses (1.3m, 1.6m, 2.2m or 3.0m) & Flat Face or ISO Poppet Couplings
  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with a DIGGA Bell Motor by Danfoss
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • Low maintenance with 5 year gear box and 3 year motor warranty
  • 65mm Round Output Shaft

Specifications

  • Recommended Flow Range: 20 - 75 L/Min
  • Max Torque: 3578 Nm
  • Motor: Danfoss
  • Max Pressure: 205 bar @ 73 L/Min
  • Max Flow (Do not exceed): 76 L/Min @ 197 bar
  • Dimensions: 766mm x 240mm
  • Weight: 75kg

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.

Any location with a house is considered a residential property, including farms and businesses.

FEATURES

  • Improved motor design & performance with 2 Speed options:
  • Low speed - High torque for large holes
  • High speed - Low torque for smaller holes
  • Suitable for a wide range of ground conditions:Soft loose soils, hard soils, and rocky conditions
  • Integrated PRV (Pressure Relief Valve)
  • Simple electrical connection, 12 or 24 volt coil, just requiring connection
  • Optional joystick switches, floor mounted switches & cigarette plugs available pre-wired to suit
  • Includes Hydraulic Hoses (1.3m, 1.6m, 2.2m or 3.0m) & Flat Face or ISO Poppet Couplings
  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with a DIGGA Bell Motor by Danfoss
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • Low maintenance with 5 year gear box and 3 year motor warranty
  • 65mm Round Output Shaft

Specifications

  • Recommended Flow Range: 20 - 75 L/Min
  • Max Torque: 3578 Nm
  • Motor: Danfoss
  • Max Pressure: 205 bar @ 73 L/Min
  • Max Flow (Do not exceed): 76 L/Min @ 197 bar
  • Dimensions: 766mm x 240mm
  • Weight: 75kg
