DESCRIPTION

Silvan MK2 Easyroll 50m Retractable Hose Reel

Designed and built in Australia, the Silvan MK2 Easyroll helps reduce operator fatigue during fence line, roadside, nursery, glasshouse and scrub spraying. Its stainless-steel frame, 12V direct-drive rewind and remote control make hose handling faster and easier from a suitable flat mounting surface.

Construction

  • Lightweight and Compact.
  • Heavy duty thick gauge stainless steel construction.
  • Stainless steel finish is superior to paint for ultimate resistance corrosion and scratches.
  • Electric direct drive system assembly eliminates the use of chains, belts, and sprockets for more reliable and safer working conditions. This means that there are no belts or chains that need to be regularly checked and tensioned or replaced.
  • Direct drive system is effectively maintenance free

Motor

  • 12V DC Brushless High Torque electric motor.
  • Max 25amp Draw.

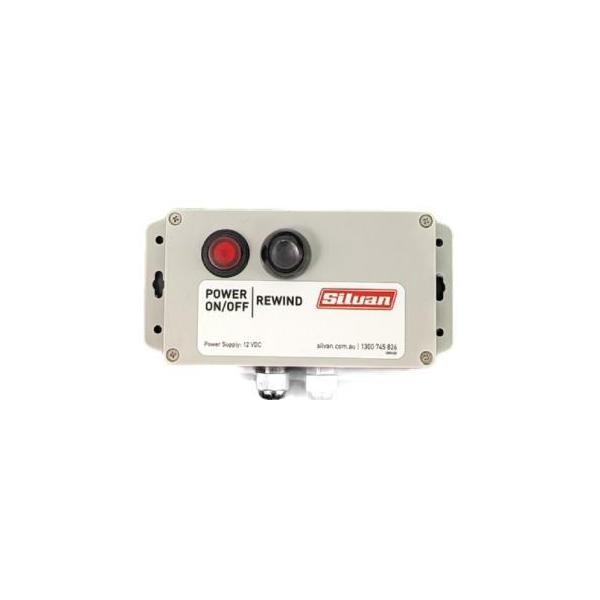

Remote Control

  • Single channel control 433mhz with adaptive frequency hopping prevents interference for reliable performance across undulating terrain.
  • Remote Mounted Controls
  • On/Off power switch and manual override rewind switch.

Hose Reel Specifications

  • Push Pull connections on outlet and hub.
  • Hose: 50m of 12mm O.D Kink resistant nylon tubing with push fit fitting.
  • 250psi working pressure.
  • Spray Gun: Atomiser with hose swivel and gun holder.
  • Performance: Spray up to 15m distance.

Mounting the MK2 Easyroll Hose Reel

  • Select a flat surface that can hold the weight of the hose reel.
  • Position the hose reel on the surface, mark the hole locations (175mm x 175mm).
  • Using a drill to create holes at the marked locations.
  • Tighten the hosereel with M 10 Bolts, nuts and washers.

Pump Pairing

  • Ideal pump to use is the Silvan Comet LBA-34C.
  • 5.5Hp Honda GX160.
  • Comet MC20/20 18.5L/min open flow capacity and 20Bar/290psi maximum pressure.
  • Silvan self-priming positive displacement oil-backed diaphragm Pump with nitrile diaphragms and corrosion resistant, cast anodised aluminium body.

Control Valve

  • Pressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the MK2 EASYROLL hose reel and 1 for an optional Spray boom.

FEATURES

Construction

  • Lightweight and Compact.
  • Heavy duty thick gauge stainless steel construction.
  • Stainless steel finish is superior to paint for ultimate resistance corrosion and scratches.
  • Electric direct drive system assembly eliminates the use of chains, belts, and sprockets for more reliable and safer working conditions. This means that there are no belts or chains that need to be regularly checked and tensioned or replaced.
  • Direct drive system is effectively maintenance free

Motor

  • 12V DC Brushless High Torque electric motor.
  • Max 25amp Draw.

Remote Control

  • Single channel control 433mhz with adaptive frequency hopping prevents interference for reliable performance across undulating terrain.
  • Remote Mounted Controls
  • On/Off power switch and manual override rewind switch.

Hose Reel Specifications

  • Push Pull connections on outlet and hub.
  • Hose: 50m of 12mm O.D Kink resistant nylon tubing with push fit fitting.
  • 250psi working pressure.
  • Spray Gun: Atomiser with hose swivel and gun holder.
  • Performance: Spray up to 15m distance.

Mounting the MK2 Easyroll Hose Reel

  • Select a flat surface that can hold the weight of the hose reel.
  • Position the hose reel on the surface, mark the hole locations (175mm x 175mm).
  • Using a drill to create holes at the marked locations.
  • Tighten the hosereel with M 10 Bolts, nuts and washers.

Pump Pairing

  • Ideal pump to use is the Silvan Comet LBA-34C.
  • 5.5Hp Honda GX160.
  • Comet MC20/20 18.5L/min open flow capacity and 20Bar/290psi maximum pressure.
  • Silvan self-priming positive displacement oil-backed diaphragm Pump with nitrile diaphragms and corrosion resistant, cast anodised aluminium body.

Control Valve

  • Pressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the MK2 EASYROLL hose reel and 1 for an optional Spray boom.

Product Details

SPECIFICATIONS

SKU 180NL2
Brand Silvan
Shipping Weight 20.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
