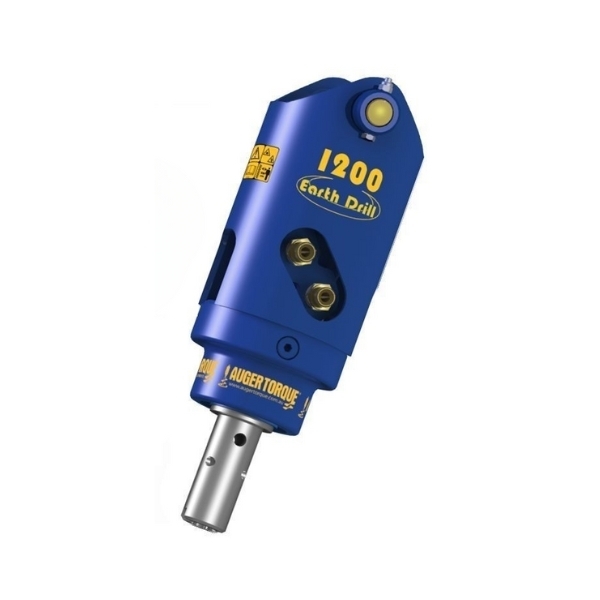

Auger Torque - Earthdrill 1200

Auger Torque Earthdrill 1200

Earthdrill:

Model: Earthdrill 1200
Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
Suitable for excavators up to 1.2 Tonne
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Earthdrill/Auger Drive Specifications & Requirements:

Oil Pressure Range: 30 -185 bar
Torque range: 189 -1,164 Nm
Oil Flow Range: 15 - 32 lpm
Speed range: 38-81 rpm
Hub Options: 50mm Round (Standard) - Stihl coupling also available upon request
Unit weight: 35kg (Not including Hitch)

Further Options

Single Pin Hitch
Double Pin Hitch

Further Options Available:

Complete range of S2 Spec Augers sizes from 4″/100 mm up to 12″ 300 mm in Diameter
Please Inquire if you have any further questions

Machine Suitability:

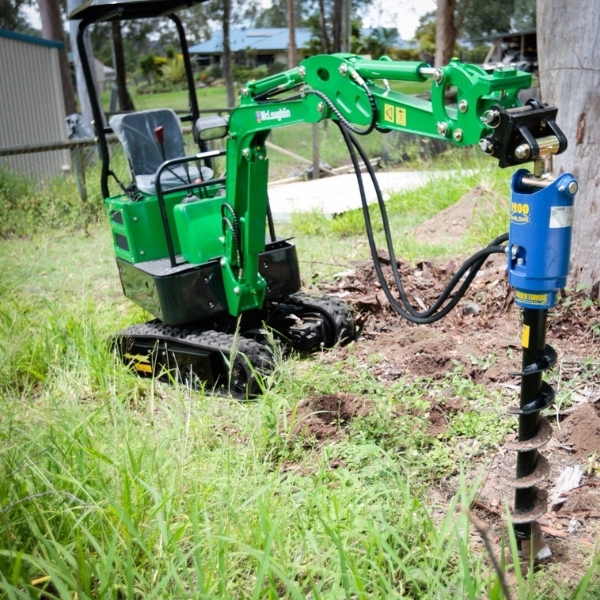

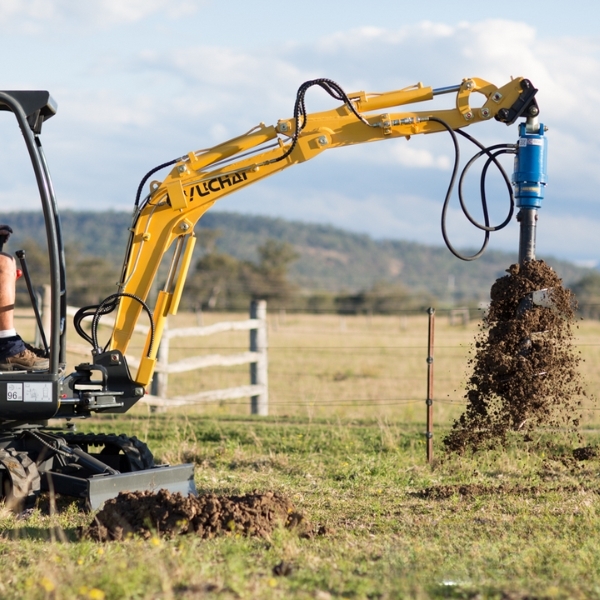

This fits as Exacavators attachments on excavators up to 1.2 Tonne

We have a complete range of Earthdrills also available on Skid Steer Loaders, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability

Please don't hesitate to contact us if you have any further questions or queries.
