Auger Torque - Earthdrill 25000MAX

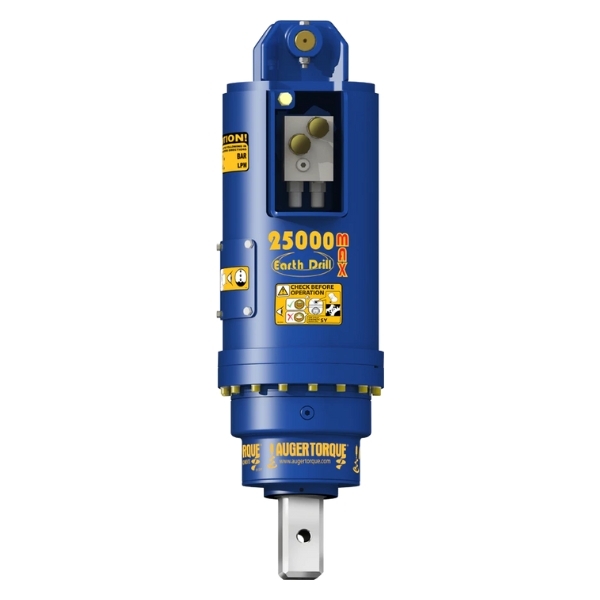

Auger Torque Earthdrill 25000MAX

Earthdrill:

Model: 25000MAX
Includes 1.8 Mtr hydraulic hoses fitted with Flush Face or ISO Couplers

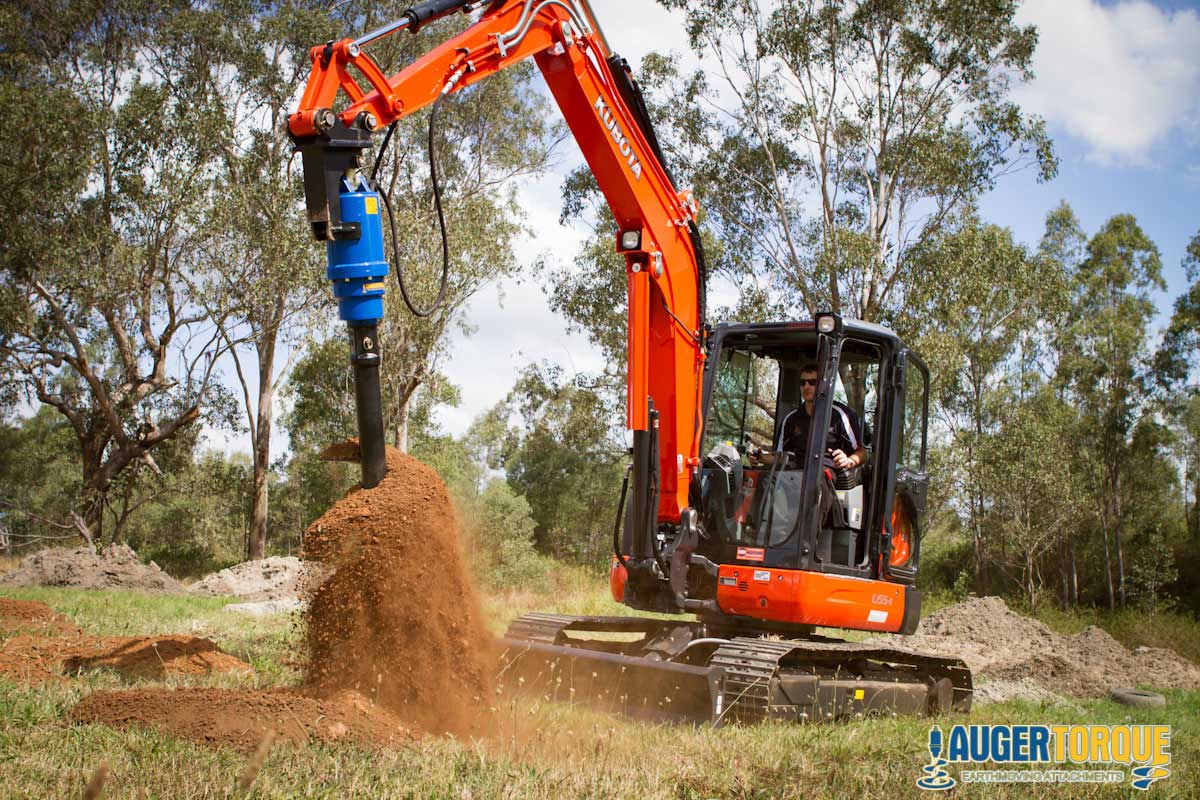

Suitable for excavators 12.0 to 22.0 Tonne
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Earthdrill/Auger Drive Specifications & Requirements:

Oil Pressure Range: 160- 240bar
Torque range: 16,503 - 24755 Nm
Oil Flow Range: 80 - 170 lpm
Speed range: 12-26 rpm
Hub: 75mm Square (Standard)
Unit weight: 269kg (Not including Frame or Hitch)

Further Options

Double Pin Hitch
Cradle Hitch
Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time

Further Options Available:

Complete range of S6 Spec Augers sizes from 6″/150 mm up to 60″ 1500mm in Diameter
S6 Spec Augers fitted with Rock Teeth & Rock Pilots
Extensions & Telescopic Extensions from 1000mm to 3000mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

Also available on Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability)

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.

Please note, that any location with a house is considered a residential property, including farms and businesses

Please dont hesitate to contact us if you have any further questions or queries.
