Auger Torque - Earthdrill 3000MAX + S4 300mm Auger Package

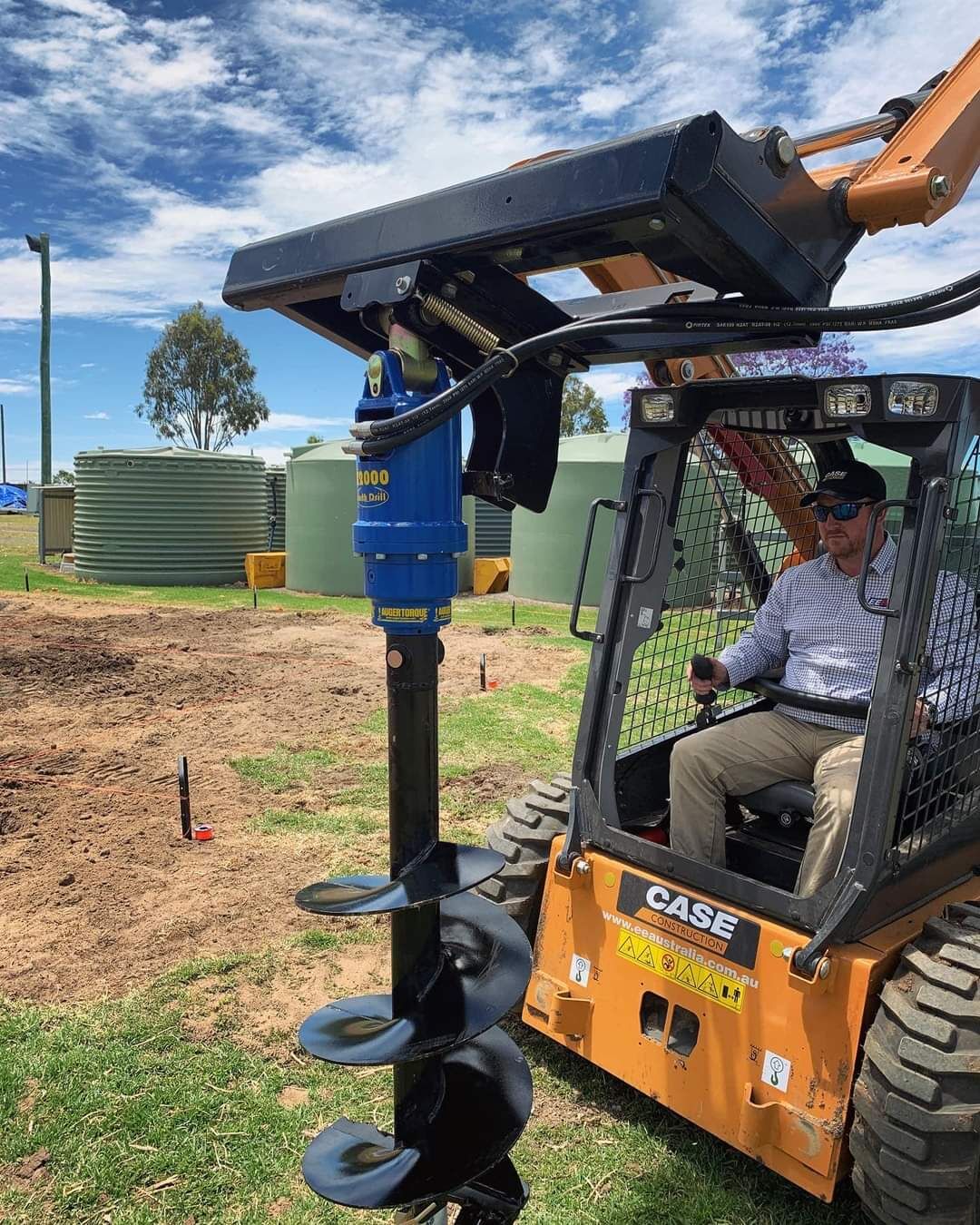

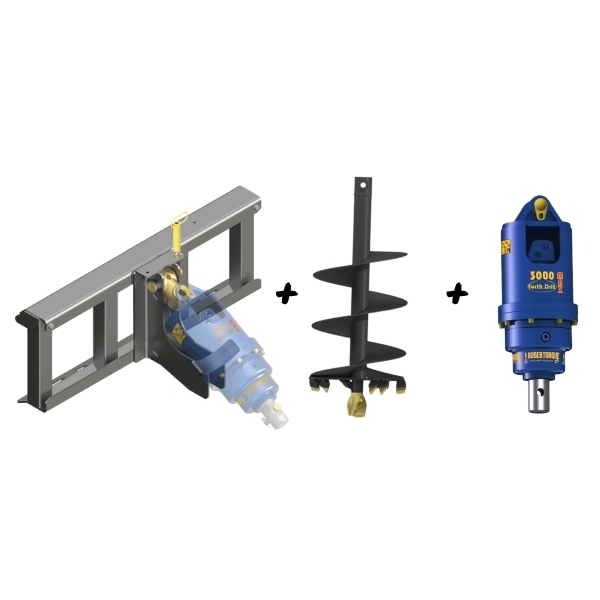

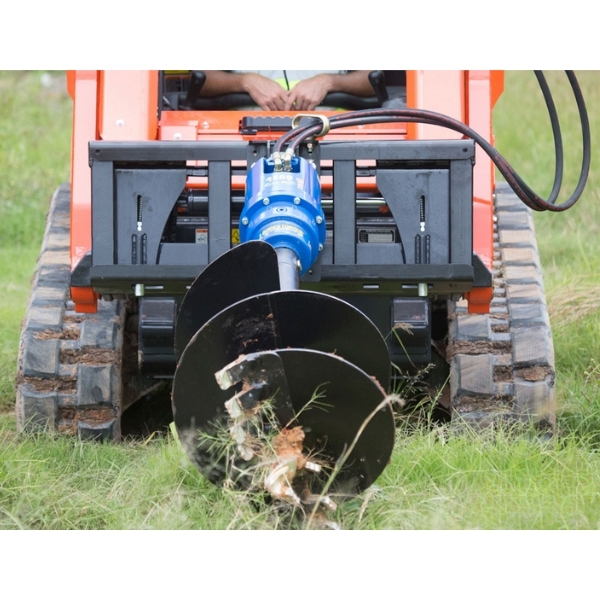

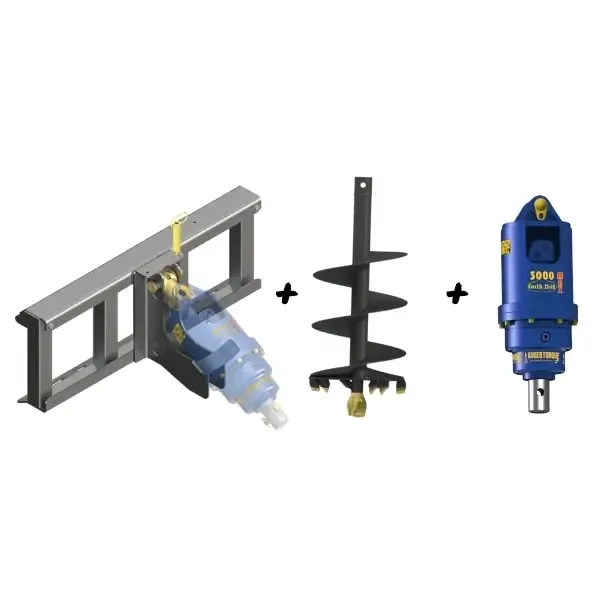

Skid Steer & Track Loader Package - Earthdrill 3000MAX + Universal Frame + 300mm Auger

Earthdrill:

Model: Earthdrill 3000 MAX
Includes a standard Universal frame to suit a Skid Steer Loader (Up to 3.5 Tonne)
1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Earthdrill/Auger Drive Specifications & Requirements:

Oil Pressure Range: 80-240 bar
Torque range: 959 -2,877 Nm
Oil Flow Range: 27 - 75 lpm
Speed range: 36-100 rpm
Unit weight: 71kg (Not including Frame or Hitch)

Auger Specifications:

Model: S4 Spec - 300mm
Teeth: Shock Lock™– Tungsten (Top of the range)
Hub: Standard 65mm Round (Full range of shaft sizes upon request)
6mm Flights
Double Cut boring head
1200mm Overall length
Uses patented Shock Lock™ Tooth Locking system

Further Options Available:

Complete range of S4 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
S4 Spec Augers fitted with Rock Teeth & Rock Pilots

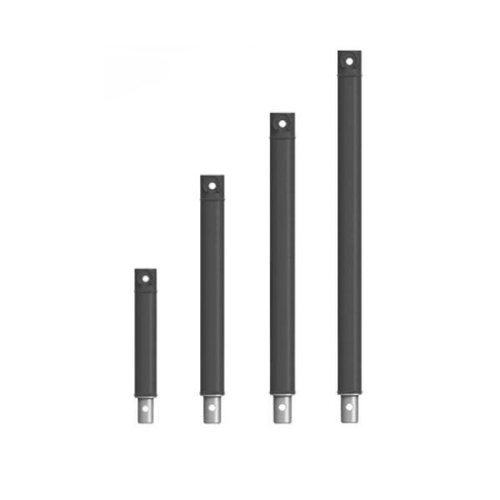

Extensions & Telescopic Extensions from 500mm to 1500mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

Also available on Excavator, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.

Please note, that any location with a house is considered a residential property, including farms and businesses

Please don't hesitate to contact us if you have any further questions or queries
