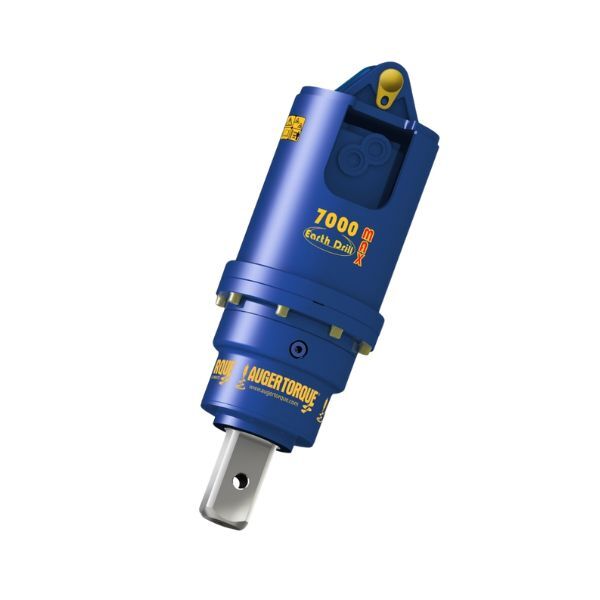

Auger Torque Earthdrill 7000MAX
Earthdrill:
- Model: Earthdrill 7000MAX
- Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
- Suitable for excavators 5.0 to 8.0 Tonne
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- European designed and manufactured to industry standard ISO 9001
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 80 -260 bar
- Torque range: 2,133 -6,931 Nm
- Oil Flow Range: 60 - 135 lpm
- Speed range: 36-81 rpm
- Hub Options: 75mm Square (Standard)
- Unit weight: 112kg (Not including Frame or Hitch)
Further Options
- Single Pin Hitch
- Double Pin Hitch
- Cradle Hitch
- Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time
- Skid Steer Frame / Skid Steer Side Shift Frame
Further Options Available:
- Complete range of S5 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
- S5 Spec Augers fitted with Rock Teeth & Rock Pilots

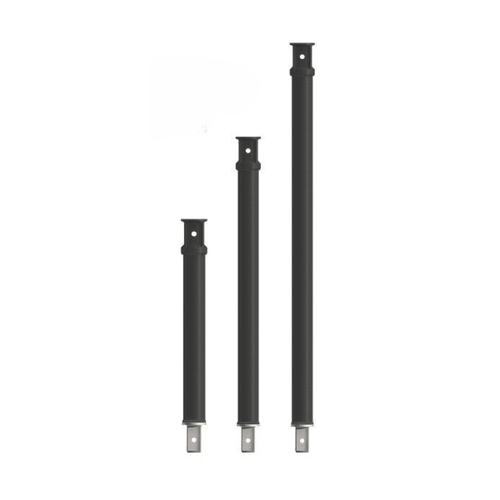

- Extensions & Telescopic Extensions from 500mm to 1500mm
- Clean out discs / Hole Cleaners
- Please Inquire if you have any further questions
Machine Suitability:
Excavators & Skid Steer Loaders up to 8.0 Tonne
Also available on Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability)
