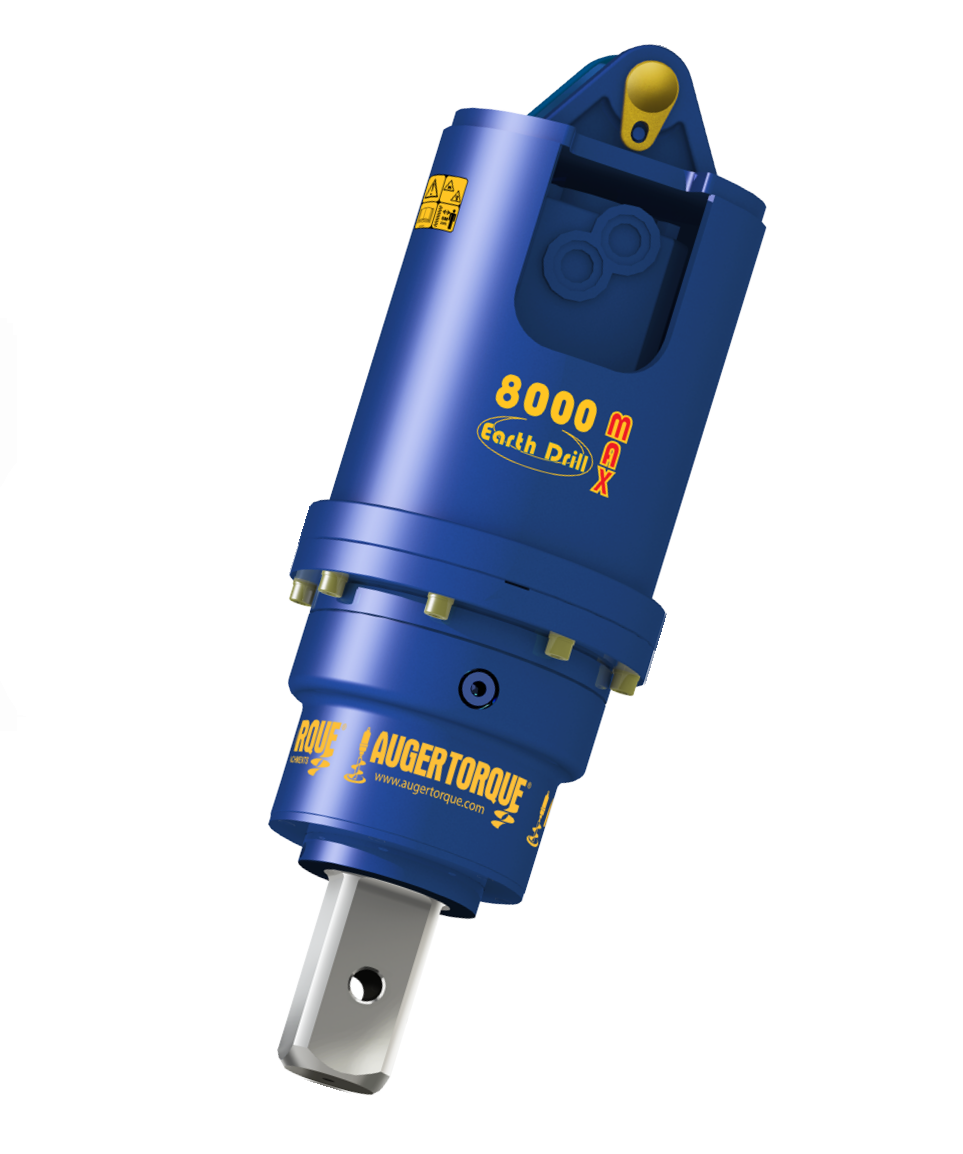

Auger Torque Earthdrill 8000MAX
Earthdrill:
- Model: 8000MAX
- Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
- Suitable for excavators 5.0 to 8.0 Tonne
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- European designed and manufactured to industry standard ISO 9001
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 80 -240 bar
- Torque range: 2,717 - 8,152 Nm
- Oil Flow Range: 70 - 150 lpm
- Speed range: 33-70 rpm
- Hub Options: 75mm Square (Standard)
- Unit weight: 116kg (Not including Frame or Hitch)
Further Options
- Single Pin Hitch
- Double Pin Hitch
- Cradle Hitch
- Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time
- Skid Steer Frame / Skid Steer Side Shift Frame
Further Options Available:
- Complete range of S5 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
- S5 Spec Augers fitted with Rock Teeth & Rock Pilots
- Extensions & Telescopic Extensions from 500mm to 1500mm
- Clean out discs / Hole Cleaners
- Please Inquire if you have any further questions
Also available on Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability)
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Please note, that any location with a house is considered a residential property, including farms and businesses
Please dont hesitate to contact us if you have any further questions or queries.
