Auger Torque - Earthdrill X2500

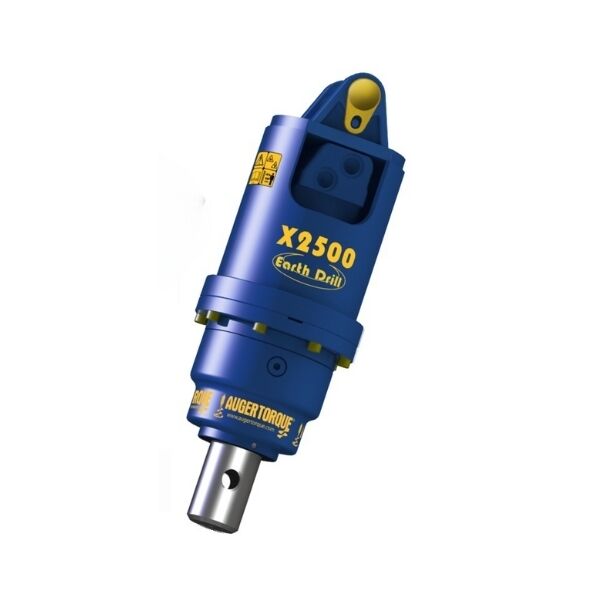

Auger Torque Earthdrill X2500

Earthdrill:

Model: Auger Torque X2500
Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers

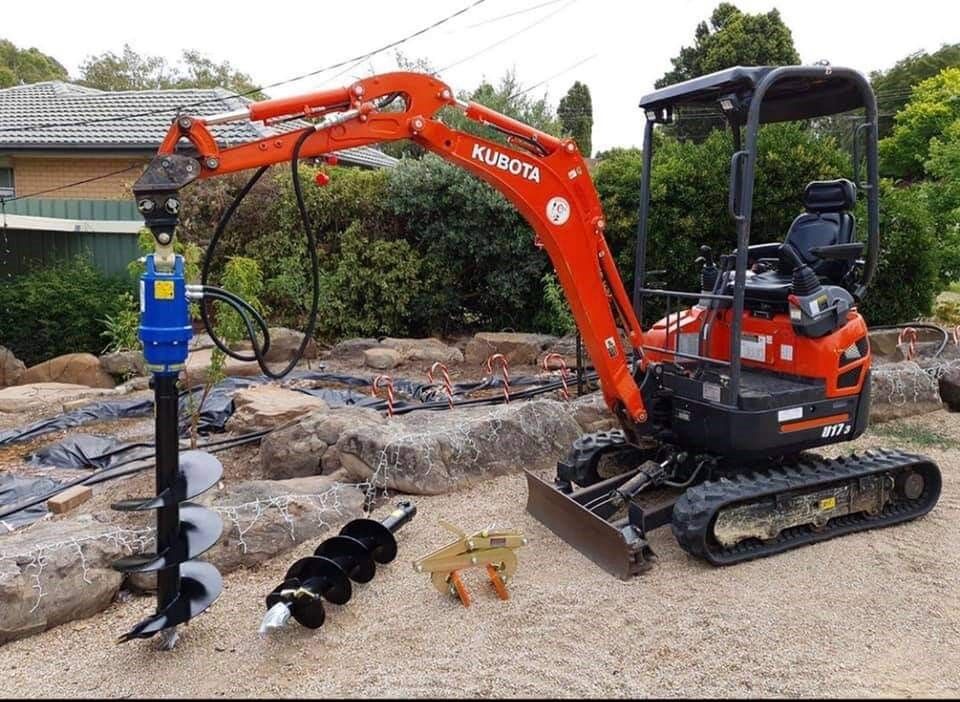

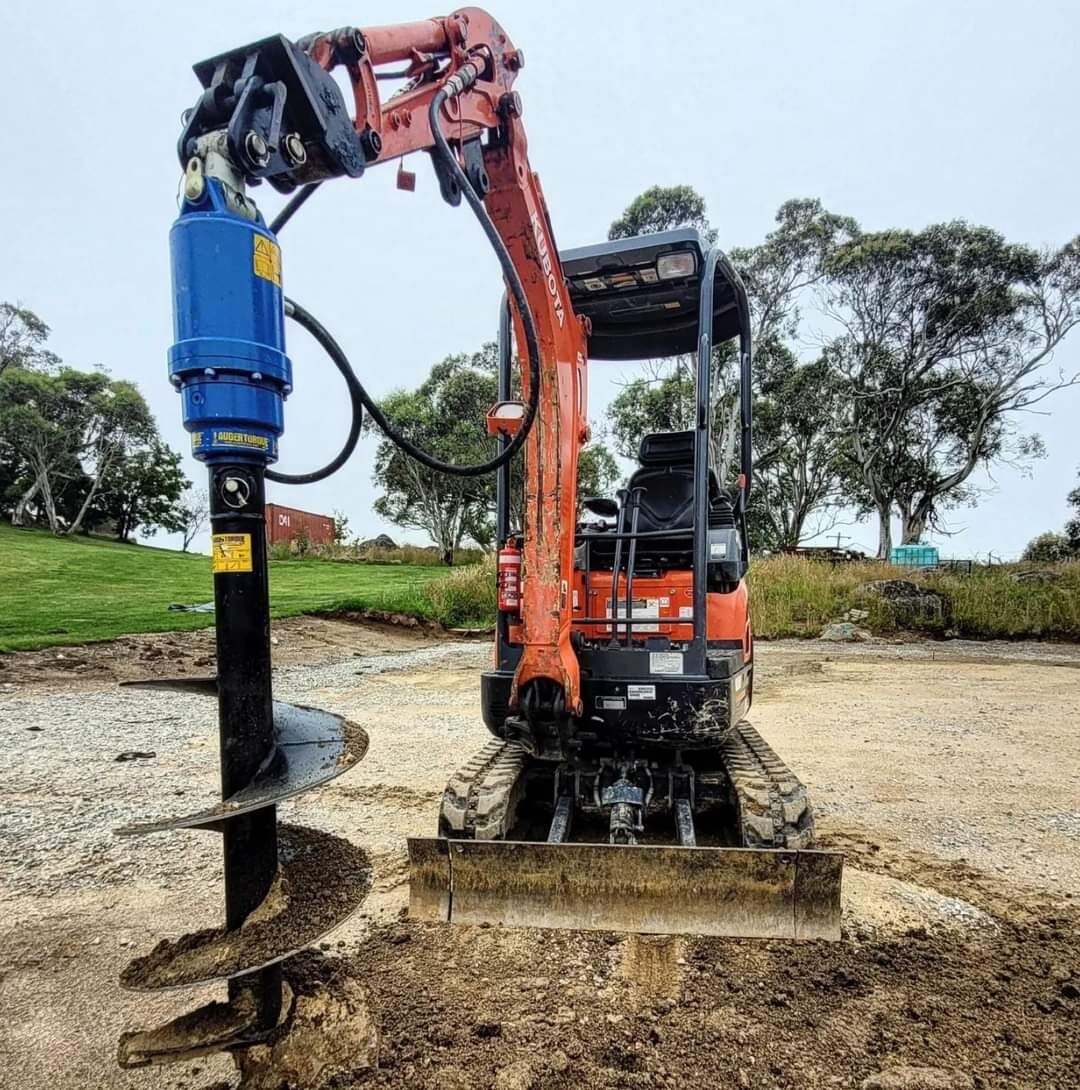

Suitable for excavators up to 3.0 Tonne
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Earthdrill/Auger Drive Specifications & Requirements:

Oil Pressure Range: 70 -240 bar
Torque range: 830 -2,847 Nm
Oil Flow Range: 27 - 65 lpm
Speed range: 36-87 rpm
Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
Unit weight: 48kg (Not including Frame or Hitch)

Further Options

Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time

Further Options Available:

Complete range of S4 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
S4 Spec Augers fitted with Rock Teeth & Rock Pilots
Extensions & Telescopic Extensions from 500mm to 1500mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

Available on Skid Steer Loaders, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.

Please note, that any location with a house is considered a residential property, including farms and businesses

Please dont hesitate to contact us if you have any further questions or queries.
