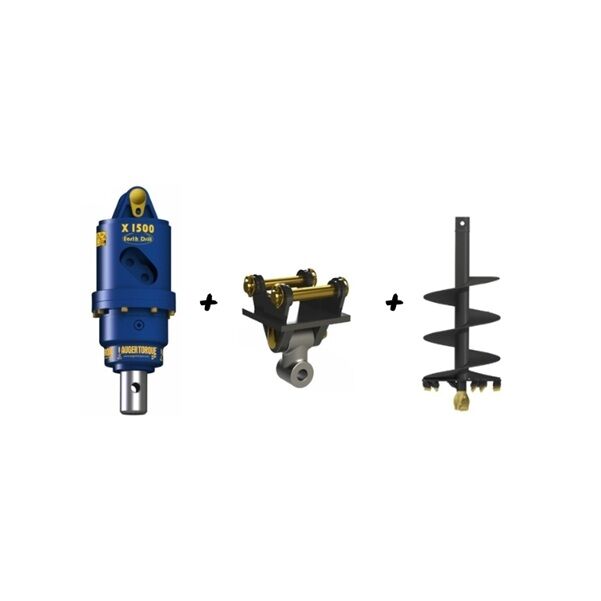

Auger Torque Earthdrill X1500 + Double Pin Hitch + 300mm Auger Package
Earthdrill:
- Model: Earthdrill X1500
- Includes a Double Pin Hitch to suit an excavator (Up to 1.5 Tonne)
- 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
- Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- European designed and manufactured to industry standard ISO 9001
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 70 -205 bar
- Torque range: 511 -1,496 Nm
- Oil Flow Range: 20 - 45 lpm
- Speed range: 44-98 rpm
- Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
- Unit weight: 46kg (Not including Frame or Hitch)
Auger Specifications:
- Model: S4 Spec - 300mm
- Teeth: Shock Lock™– Flat Tungsten (Top of the range)
- Hub: Standard 65mm Round (Full range of shaft sizes upon request)
- 6mm Flights
- Double Cut boring head
- 1200mm Overall length
- Uses patented Shock Lock™ Tooth Locking system
Further Options Available:
- Complete range of S4 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
- S4 Spec Augers fitted with Rock Teeth & Rock Pilots
- Extensions & Telescopic Extensions from 500mm to 1500mm
- Clean out discs / Hole Cleaners
- Please Inquire if you have any further questions

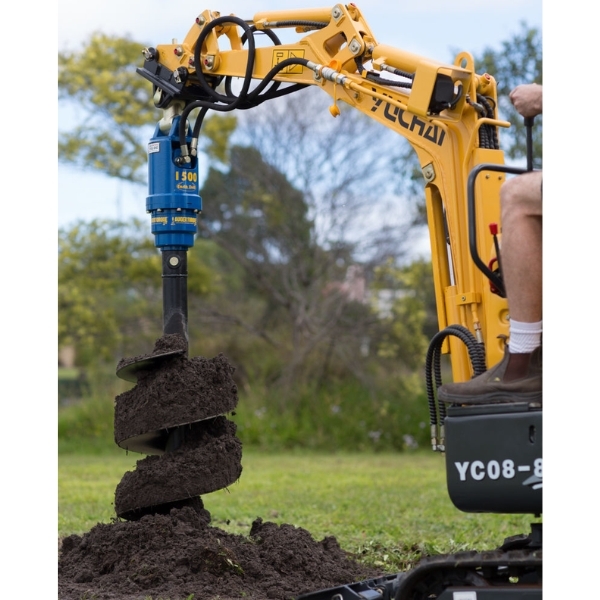

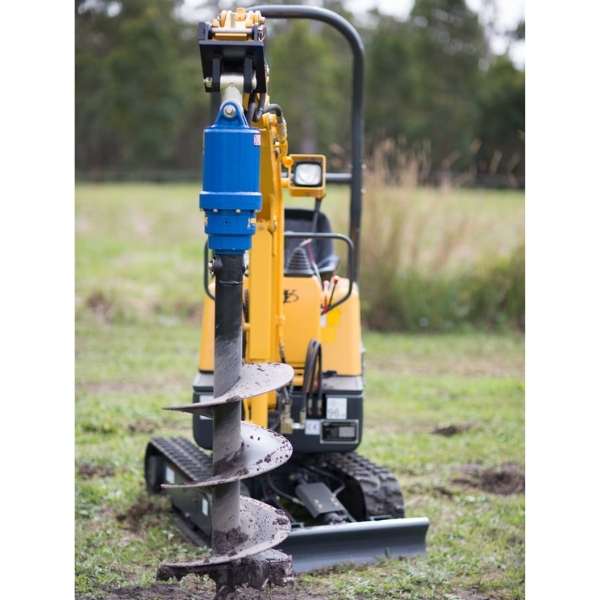

Machine Suitability:
Excavators to 1.5 Tonne
Also available on Skid Steers, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability
Please dont hesitate to contact us if you have any further questions or queries.
