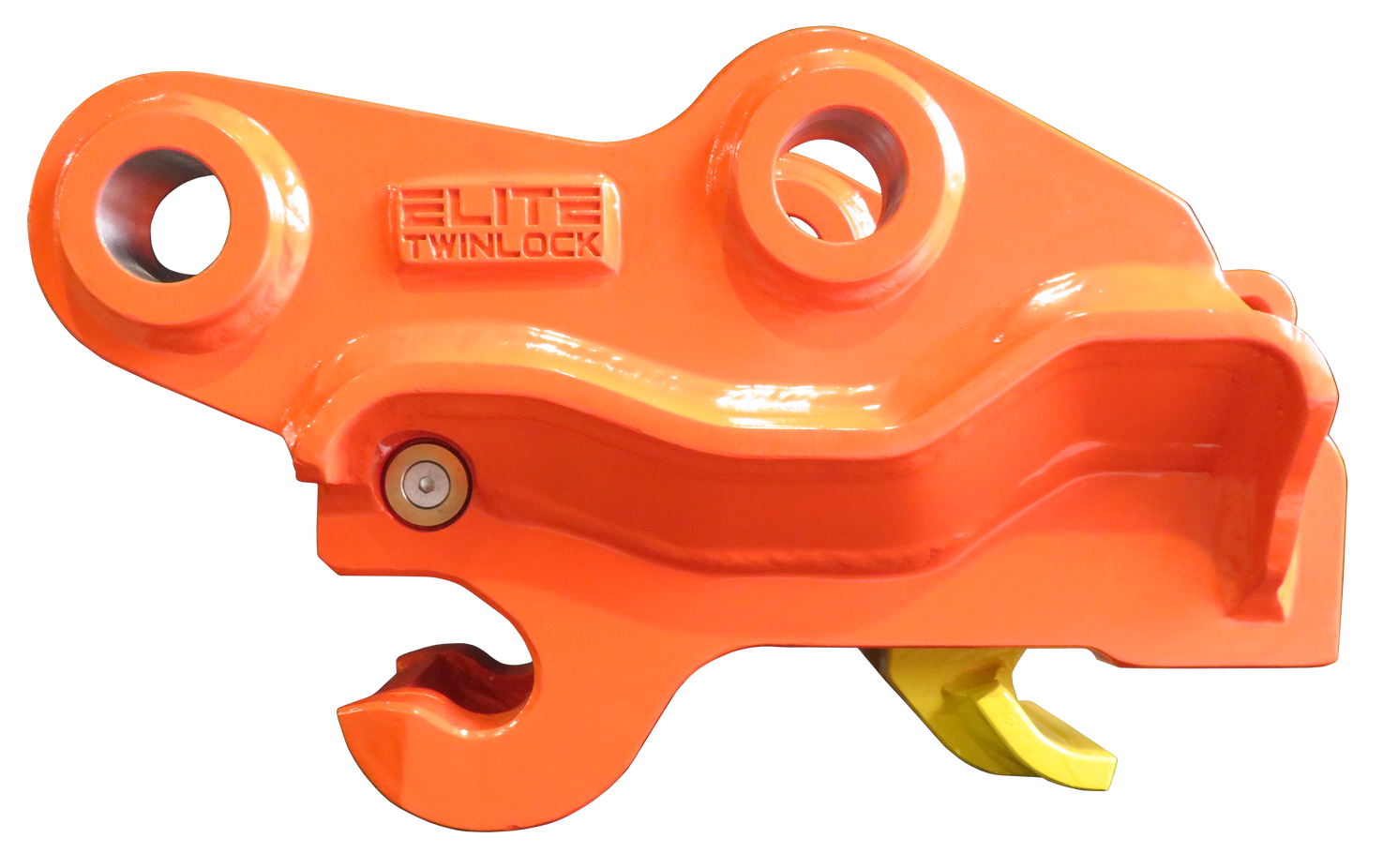

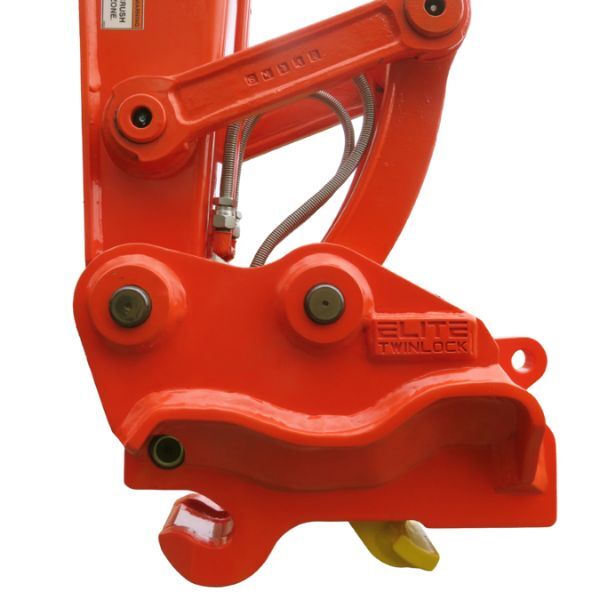

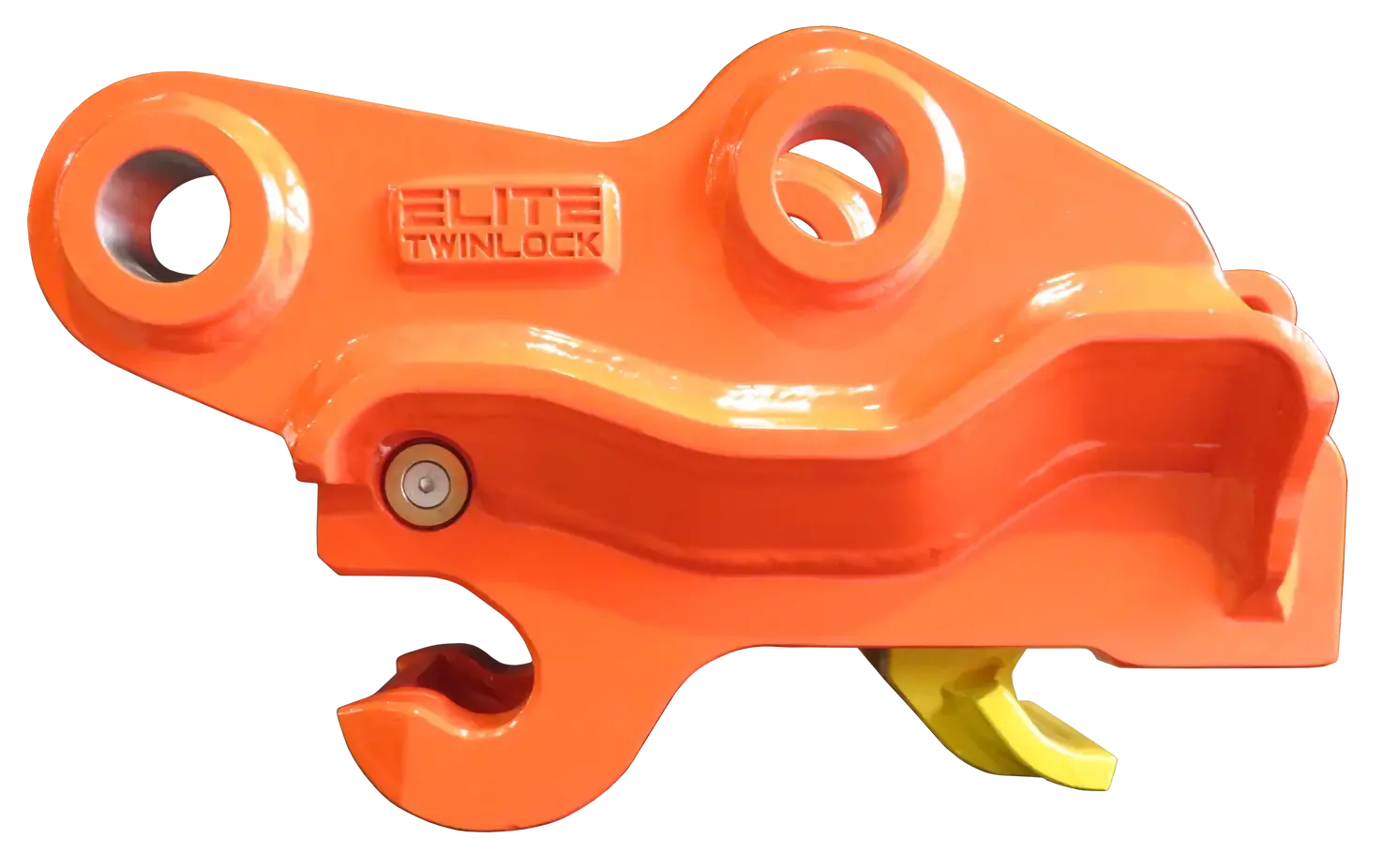

Elite Twin Lock - Hydraulic Quick Hitch - Suits Kubota 5.5 Tonne U55-4 Excavator

With over 30 years experience in the industry has allowed Elite Attachments to gain unparalled experience and insight in developing automatic quick hitches. The hydraulically operated Elite TwinLOCK is impressive in its simplicity and efficiency. Minimal components and a tough fabricated body allow for supperior performance, reliabilty and longevity in the field. The patented TwinLOCK mechanism enables simultaneous locking on both attachment pins at all time, for added workplate safety and compliance.



Specifications:

• Compliant with Austrailian (AS4772-2008) and international (ISO 13031-2012) Hydraulic Hitch Standards

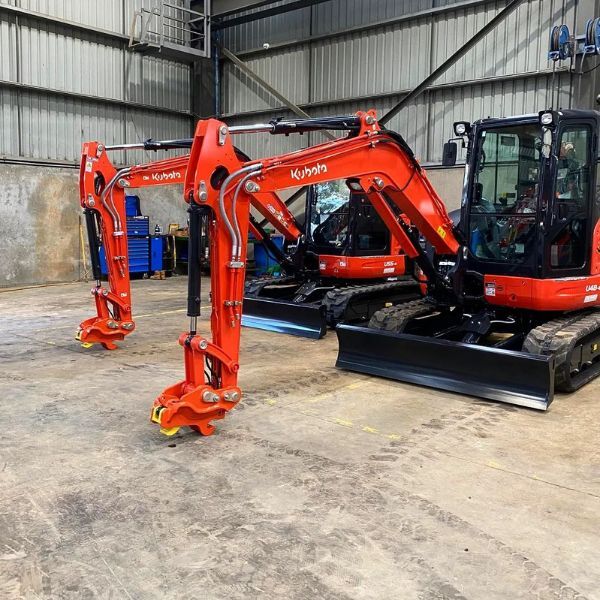

• Designed specifically for the Kubota U55-4 excavator
• Fully Automatic - No Manual Safety Pin required
• Twin Locking Hitch - Indenpant locking on the front and rear attachment pins
• Simple construction - With 3 Main Parts - Body, Slide & Cylinder
• Fitted with an integral steel plate lifting eye
• Robust Construction manufatured from thick plate sections built from 800 MPa high strength steel plate
• Supplied with precision ground greasable pins
• OEM Coloured to match Machine Colour
• Integral Lifting Eye - Fitted & Certified
• Warranty 12 months from date of installation



Optional Hose & Piping Kit:

• Hitch can be supplied with a hose & piping kit designed and tested specifically for your machine
• Custom Designed - To the exact specifications of your excavator
• Quick Fit-up - Existing mount points are used to reduce fit-up times
• Durable - Hosing is protected inside the bucket linkage and fitted with HD plastic spiral wrap
• OEM Coloured - Painted to match the original Kubota Orange colour



Further Options Avaliable:

• The Elite TwinLOCK hitch is avaliable for a wide range of machines & specifications
• Installation is also avaliable



Suit Models:

• Kubota U55-4, U48-4, KX057-4, KX161-3, KX045, U45-3



SKU	EL55TL-45-KUB
Brand	Elite Attachments
Unit Of Measure	ea
