DESCRIPTION

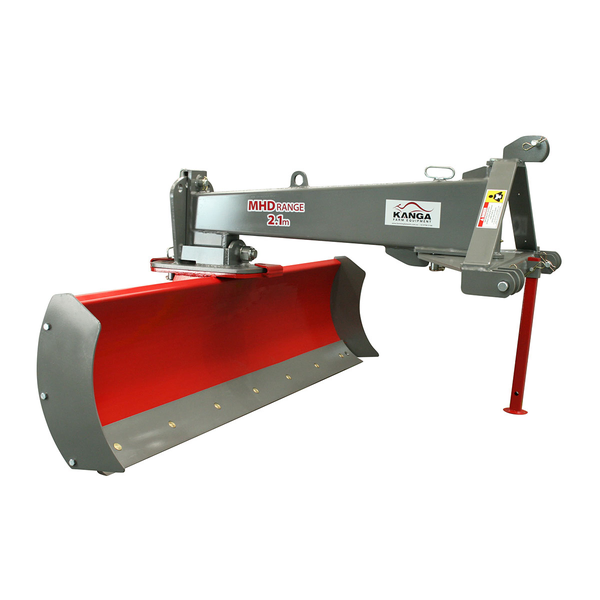

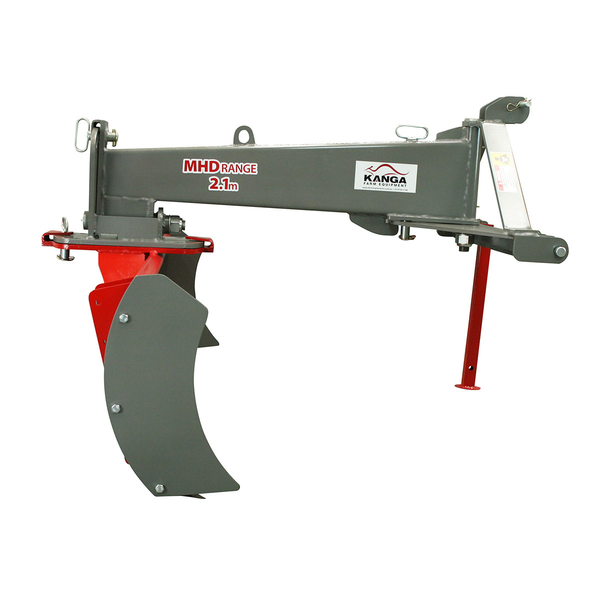

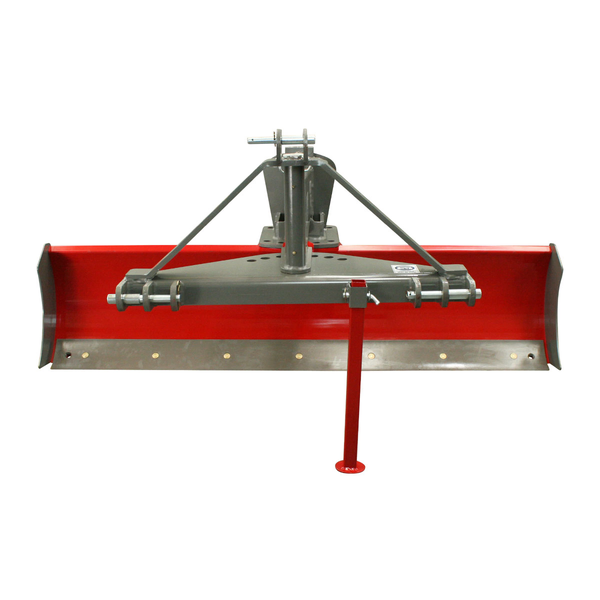

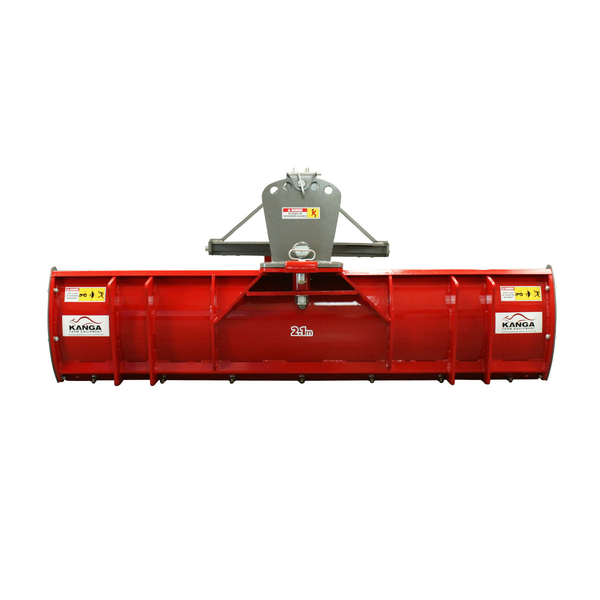

The Kanga KBMHD MHD Range Grader Blade is an Australian-made tractor implement for heavier grading, levelling, backfilling and surface shaping on farms, properties, construction sites and access tracks.

Available in 1.8m and 2.1m widths, the MHD range suits tractors from 30-60hp, with the larger 2.1m model suited to 45-60hp tractors. The manually adjusted blade gives the operator practical control when maintaining driveways, shaping drains, forming camber or moving material along a boundary.

Built for practical grading control

  • Manual pin-and-clip angle, offset and tilt adjustment, with reinforced adjustment holes and greaseable pivot points.
  • Five blade-angle positions: square, two left and two right, with 20 and 40 degree settings.
  • Seven offset positions: square, three left and three right, with 15, 30 and 45 degree settings up to 1000mm offset.
  • Five tilt positions: square, two left and two right, with 12 and 24 degree settings.
  • Reversible 8mm mouldboard for forward grading or backblading.
  • Reversible high-alloy boron steel grading edge that is heat-treated, quenched and tempered.
  • Tapered main beam, involuted mouldboard profile and wings to help retain and roll material through the blade.
  • Category 1 and 2 three-plate double-clevis linkage mount with dual-category pins.
  • Front parking stand for easier connection to the tractor.

Choose the right width

Select the width that best matches your tractor horsepower, available working space and the material you are moving. Both models use the same manual pin-and-clip adjustment system for blade angle, offset and tilt.

Available option

An optional dual depth-wheel kit is available to assist with consistent working height and a cleaner finish on final passes.

Please confirm tractor horsepower, linkage setup and the required working width before ordering.

FEATURES

  • Australian-made MHD grader blade for 30-60hp tractors
  • 1.8m and 2.1m width options
  • Manual pin-and-clip angle, offset and tilt adjustment
  • Five angle positions with 20 and 40 degree settings
  • Seven offset positions up to 1000mm
  • Five tilt positions with 12 and 24 degree settings
  • Reversible 8mm mouldboard with material-containment wings
  • Reversible high-alloy boron steel grading edge
  • Category 1 and 2 double-clevis linkage and front parking stand
  • Optional dual depth-wheel kit available

Product Details

SPECIFICATIONS

SKU KBMHD
Brand Farm Implements
Shipping Weight 250.0000kg
Shipping Width 1.880m
Shipping Height 1.100m
Shipping Length 1.600m
Shipping Cubic 3.308800000m3
Unit Of Measure ea
