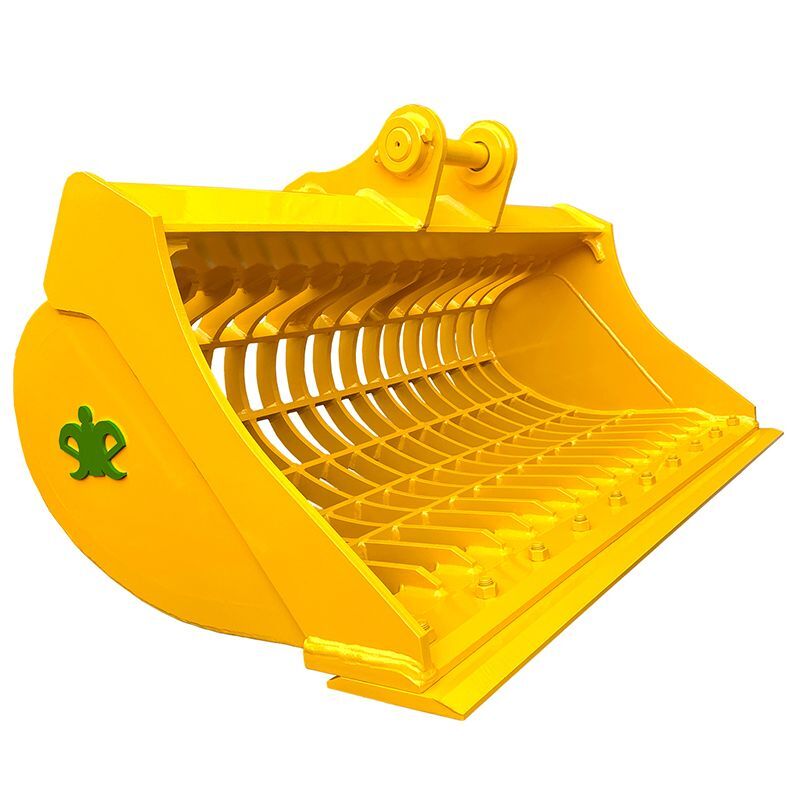

ei engineering Sieve Skeleton bucket

Skeleton Sorting/ Sifting / Sieve Bucket to suit 1.0 - 9.9 Tonne Excavators

Every one of our Skeleton buckets contains fully welded or lazer cut interlocked ribs that deliver a surge in bucket life - ensuring long-lasting heavy duty sieving for many years. They are available with rib spacing's from 75mm to 200mm making them functional in any environment. Our Skeleton buckets have hangers that are longer down the back plate for added strength through the back of the bucket.

Our distinct double radius design offers much greater efficiency when sieving. The longer back area offers around 20% more sieving area, so you will complete the sieving of your jobs faster with a lot less stress on your machine.

Splayed tooth adaptors are a recommended option that can be welded into the side plate and the side of the front edge. This makes sure the teeth are always positioned properly for optimum taper and ideal clearance without wearing out the tooth. This adds to the overall efficiency and longevity of the bucket. bolt-on-edges come standard for easy cleanup.

Features:

Double Radius GP Bucket design - Longer back area for more efficient sorting, less time spent sorting, less wear and maintenance on your machine.

Shorter Pin-To-Point Dimensions - More power at the teeth or edge, easier digging and uses less fuel

Profile Cut - Bisalloy ribs are interlocked and fully welded or lazer cut giving greater bucket strength, longer bucket life, less maintenance and replacement costs

Cutting Edge Protrudes 10-15mm Either side of the bucket - Greater bucket clearance in the trench, easier digging.

Double Bucket Back Plate - Longer bucket life

Roll Formed Bucket Top Box - Extra Bucket strength

Longer Bucket Hanger Plates - Extended down around the back plate for more strength and positive power, less maintenance and replacement costs

Further Options Available:

Bolt on Cutting Edge - Replaceable

Bucket Teeth - For better penetration, side clearance, easier digging

We have a complete range of Skeleton Buckets available from 1 Tonne to 38 Tonne.

Images and pictures may not be to scale or the exact image of the item supplied

*Further charges may apply for non-standard pickup hitch specifications

Please dont hesitate to contact us if you have any further questions or queries.

(BUCKET-SIEVE)

SKU	BUCKET-SIEVE
Brand	OZ Excavator Buckets
Unit Of Measure	ea
