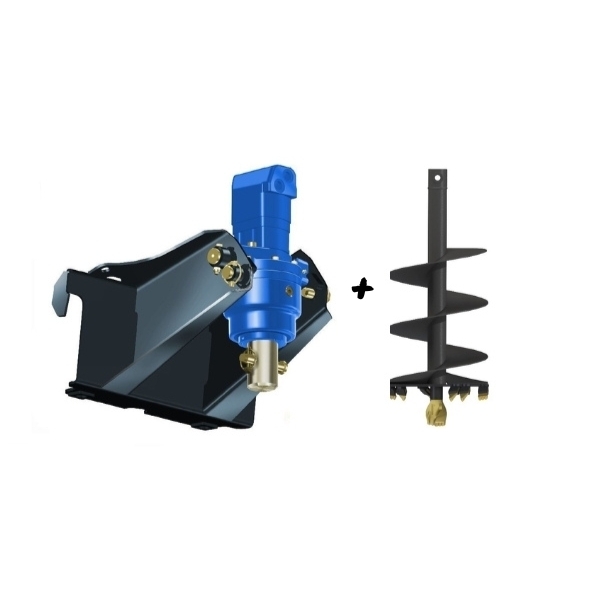

Auger Torque ML2000 + 4 Way Swing Frame + 300mm Auger Package
Earthdrill:
- Model: ML2000
- Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers

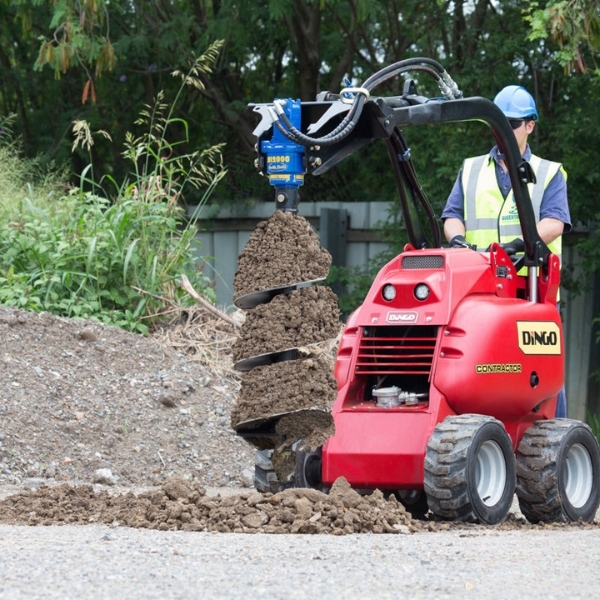

- Suitable for Mini Loaders
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- European designed and manufactured to industry standard ISO 9001
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 70 -240 bar
- Torque range: 639 -2,190 Nm
- Oil Flow Range: 25 - 57 lpm
- Speed range: 43-99 rpm
- Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
- Unit weight: 40kg (Not including Frame or Hitch)

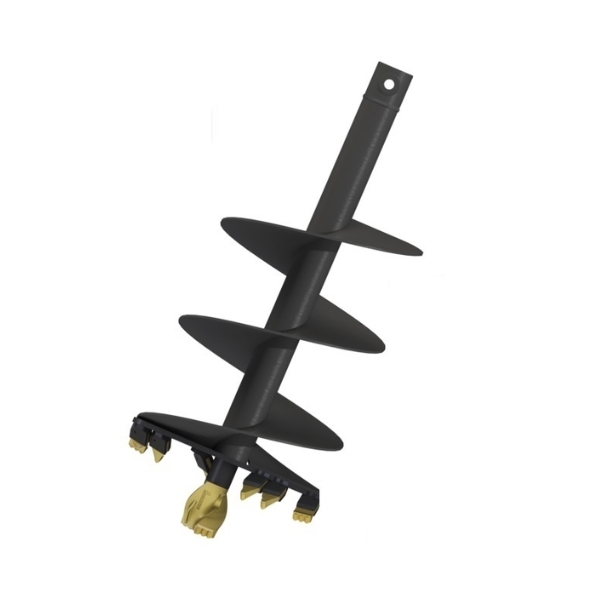

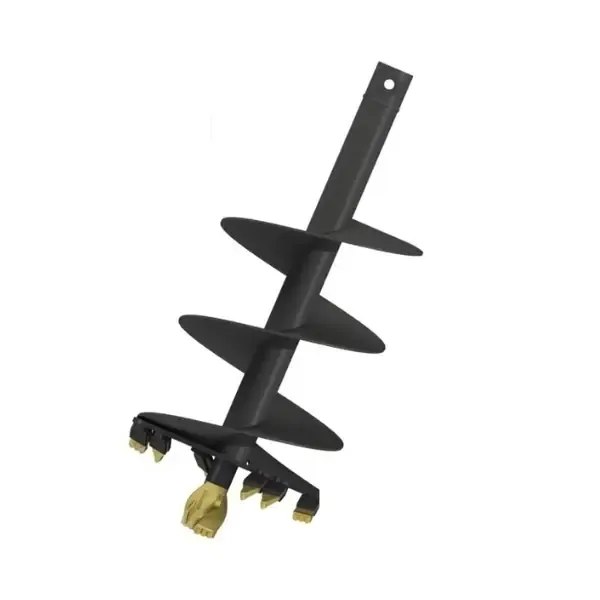

Auger Specifications:
- Model: S4 Spec - 300mm
- Teeth: Shock Lock™ – Flat Tungsten
- Hub: Standard 65mm Round
- 6mm Flights
- Double Cut boring head
- 1200mm Overall length
- Uses patented Shock Lock™ Tooth Locking system
Further Options Available:
Complete range of S4 Spec Augers sizes from 4″/100 mm up to 12″ 900 mm in Diameter
Also available on Skid Steers, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Please note, that any location with a house is considered a residential property, including farms and businesses
Please dont hesitate to contact us if you have any further questions or queries.
