*Please note price is for Earthdrill only and does not include Universal 4 way swing mounting frame. (Add $649.00 for Frame)
Earthdrill:

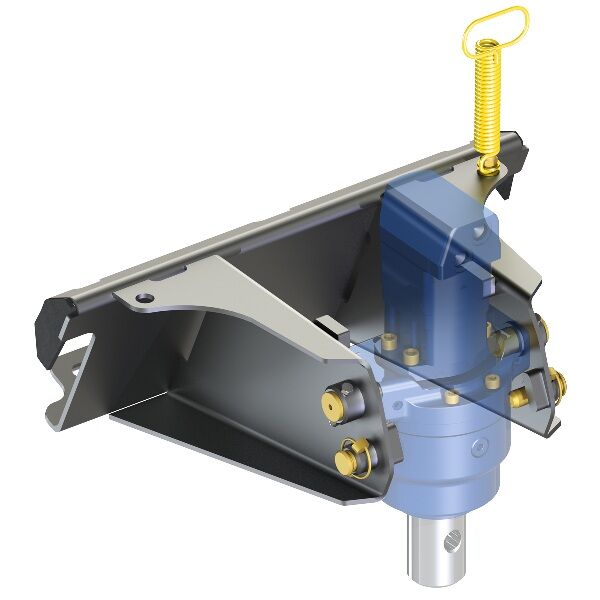

- Model: Earthdrill ML2000
- Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
- Suitable for Mini Loaders
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- European designed and manufactured to industry standard ISO 9001
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 70 -240 bar
- Torque range: 639 -2,190 Nm
- Oil Flow Range: 25 - 57 lpm
- Speed range: 43-99 rpm
- Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
- Unit weight: 40kg (Not including Frame or Hitch)
Further Options
- 4 Way Swing universal Mounting Frame
Further Options Available:
- Complete range of S4 Spec Augers sizes from 4″/100 mm up to 18″ 450 mm in Diameter
- S4 Spec Augers fitted with Rock Teeth & Rock Pilots
- Extensions & Telescopic Extensions from 500mm to 1500mm
- Clean out discs / Hole Cleaners
- Please Inquire if you have any further questions

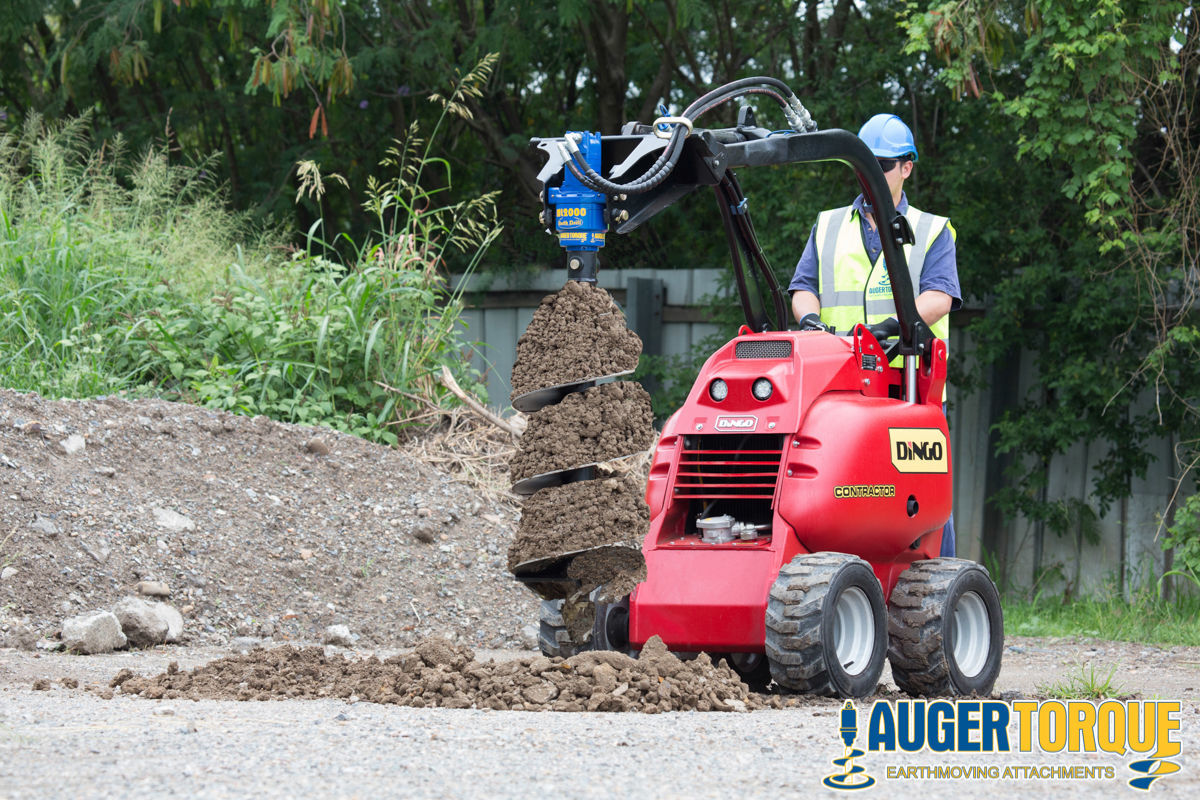

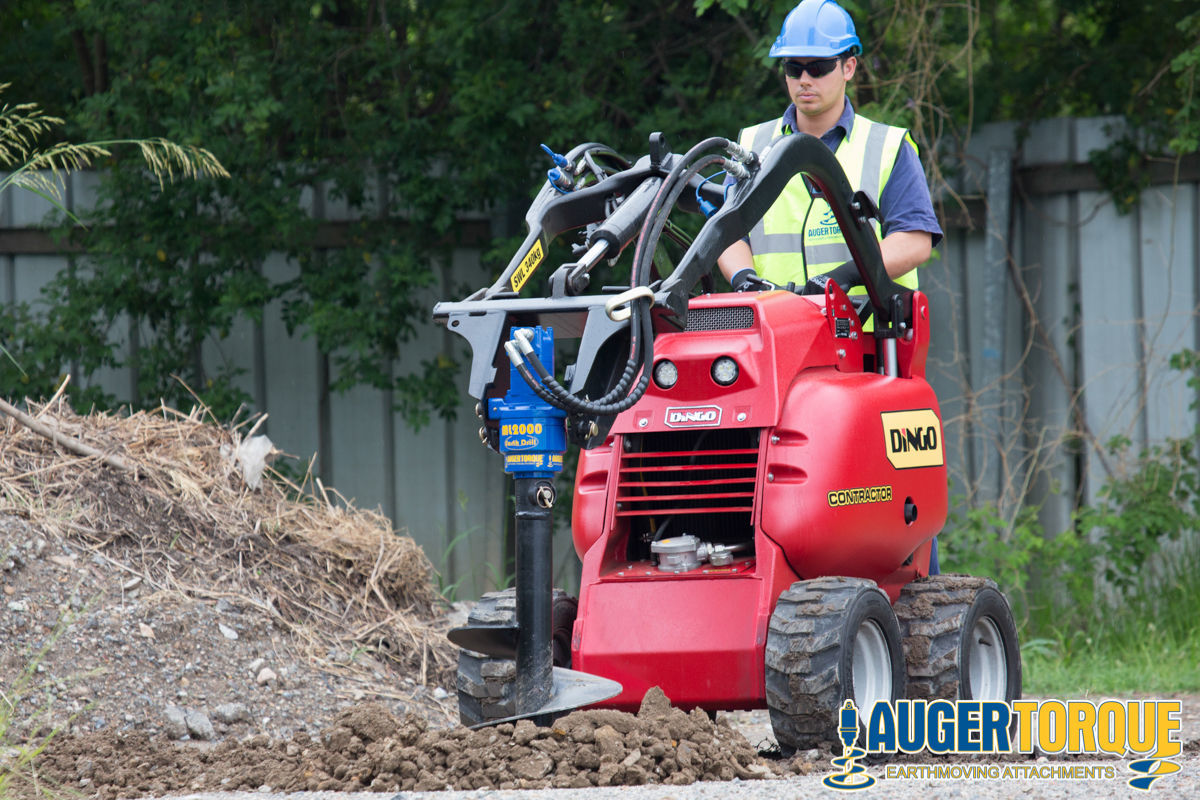

Machine Suitability:
Also available on Excavators, Skid Steer Loaders, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability
Please don't hesitate to contact us if you have any further questions or queries.
