DESCRIPTION

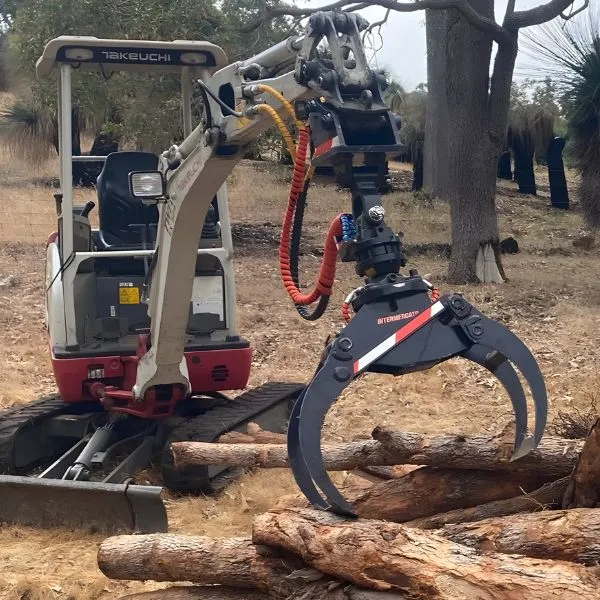

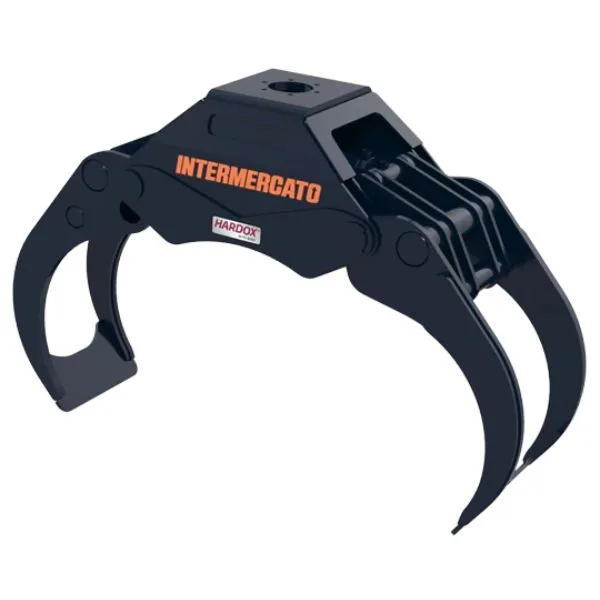

Intermercato TG16S Hydraulic Excavator Log Grab

Intermercato Log excavator grapples are all of the modern bypass design, allowing wide opening widths & capacity but still allowing very tight closing.

Intermercato log grapples are designed to grip and ACCUMULATE LOGS and the fixed teeth don't bite into logs giving faster bundling & high productivity.

Log grapples are the choice for stacking logs with forwarders, log sorting and often for feeding chippers.

All Log Excavator Grapples have the following features:

  • Belly plate to protect cylinder underneath - designed for minimum downtime.
  • Every pin greaseable with protected grease nipples - designed for a long life.
  • High clamping forces with oversized pistons - allows secure gripping of any load.
  • Excellent bundling geometry - giving rapid productivity.
  • All excavator series made from the highest quality steel available - HARDOX.
  • Built by a company specializing in excavator grabs and grapples for over 20 years.
  • All grapples can be matched with Intermercato's line up of 360 degree continuous rotators - RIGID or PENDULUM mounted.



FEATURES

  • Suitable for 2.0 to 3.0T excavators
  • Weight: 75kg (Including Head Bracket)
  • Grip Area: 0.16 m3
  • Pressure: 200 Bar
  • Flow: 20 - 40 L/Min
  • Clamping: 9 kN
  • Opening Width: 925mm
  • Closed Width: 60mm
  • Chassis Width: 301mm

Product Details

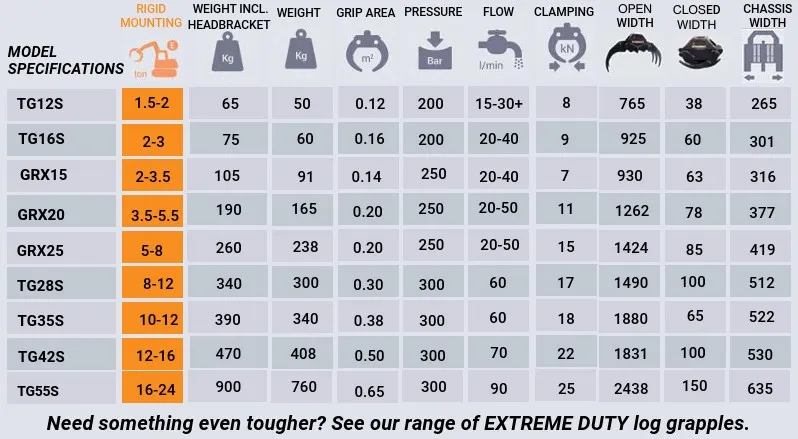

SPECIFICATIONS

SKU TG16S
Brand Intermercato
Shipping Weight 75.0000kg
Shipping Width 0.600m
Shipping Height 0.600m
Shipping Length 0.600m
Shipping Cubic 0.216000000m3
Unit Of Measure ea

About the Brand

Intermercato offers one of the world’s most versatile ranges of top quality lifting equipment for forestry, transport, construction and recycling.
