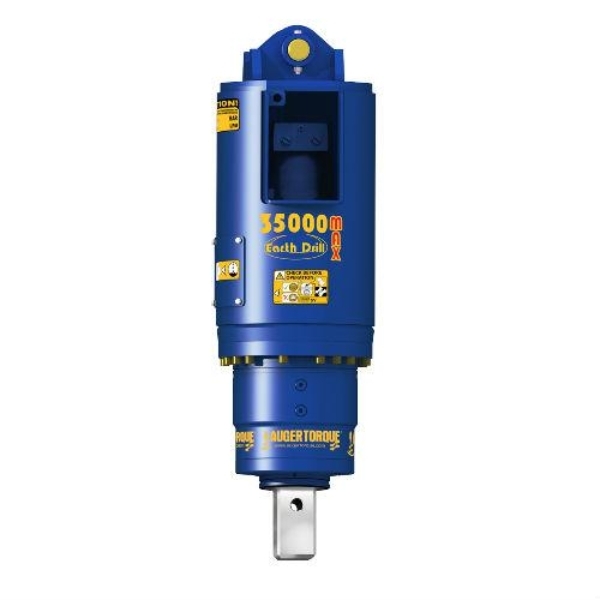

Auger Torque Earthdrill 35000MAX

The Auger Torque Earthdrill 35000MAX is an auger drive designed for use with excavator skid and track loaders ranging from 20.0 to 45.0 tonnes.

Also available on Tractors, Telehandlers & Front End loaders - Please enquire if you have any further questions about your machine suitability.

Please note that:

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Any location with a house is considered a residential property, including farms and businesses.

Suitable for excavators 20.0 to 45.0 Tonne
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty: 6-Year Gearbox, 3-Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Brand: Auger Torque
Model: 35000MAX
Oil Pressure Range: 180 - 310 bar
Torque range: 20,510 - 35,323 Nm
Oil Flow Range: 80 - 225 lpm
Speed range: 11 - 31 rpm
Hub: 110mm Square
Unit weight: 442kg (Not including Frame or Hitch)

Further Options:

Double Pin Hitch
Cradle Hitch
Hitch will be custom manufactured to suit the parent machine - Please allow 2-3 days for build time

Further Options Available:

Complete range of S6 Spec Augers sizes from 6"/150 mm up to 60" 1500mm in Diameter
S6 Spec Augers fitted with Rock Teeth & Rock Pilots
Extensions & Telescopic Extensions from 1000mm to 3000mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

SKU	EARTHDRILL35000MAX
Brand	Auger Torque
Shipping Weight	442.0000kg
Shipping Width	0.406m
Shipping Height	1.411m
Shipping Length	0.406m
Shipping Cubic	0.232583596m3
Unit Of Measure	ea
