DESCRIPTION

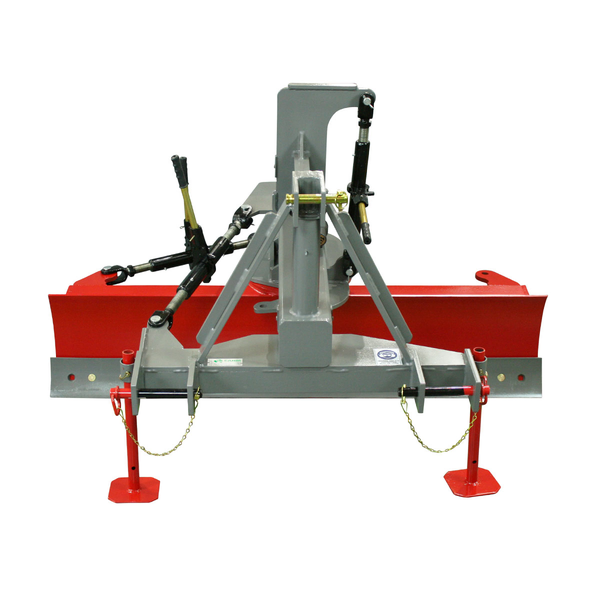

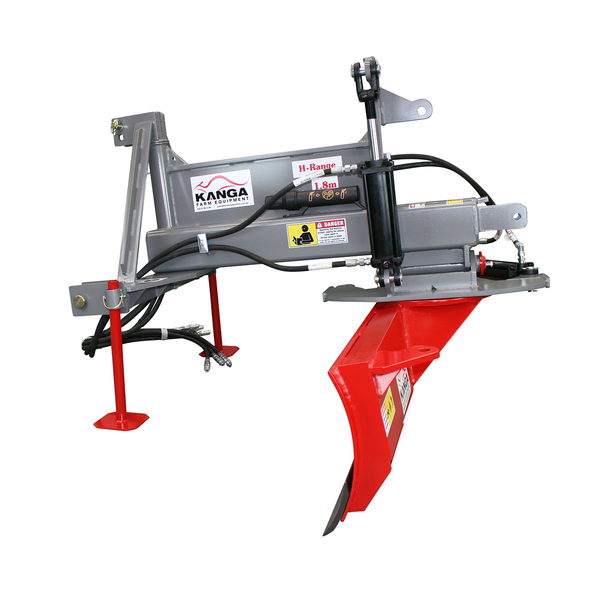

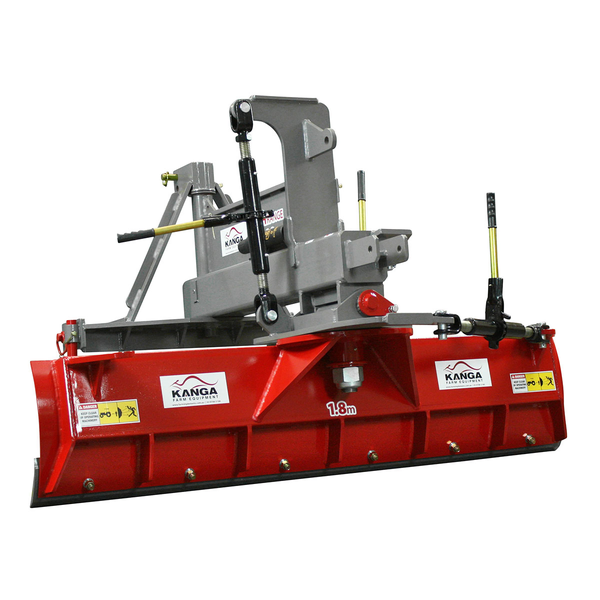

The Kanga KBH H Range Grader Blade is an Australian-made Category 2 tractor implement for grading, levelling, backfilling, shaping drains and maintaining tracks, driveways and farm surfaces.

Available in 1.8m and 2.4m working widths, the KBH range suits tractors from 50-80hp. The 2.4m models are suited to 60-80hp tractors. Select manual ratchet-jack adjustment or hydraulic adjustment to suit the way you work and the hydraulic remotes available on your tractor.

Built for controlled grading

  • Blade angle adjustment from 0-30 degrees forward or backward for directing material during each pass.
  • Blade offset from 0-20 degrees left or right for working along boundaries, drains and hard-to-reach areas.
  • Blade tilt from 0-30 degrees up or down for shaping slopes, drains and road camber.
  • 375 x 8mm reversible mouldboard with an involuted profile to help roll material cleanly during grading.
  • 150 x 12mm reversible, high-alloy boron steel cutting edge that is heat-treated, quenched and tempered.
  • Heavy-duty 150 x 150 x 9mm reinforced steel headstock with a two-plate double-clevis Category 2 linkage mount.
  • Reversible mouldboard arrangement for effective backblading while helping protect adjustment components and tractor tyres.
  • Front parking stand for easier connection to the tractor.

Choose the right KBH configuration

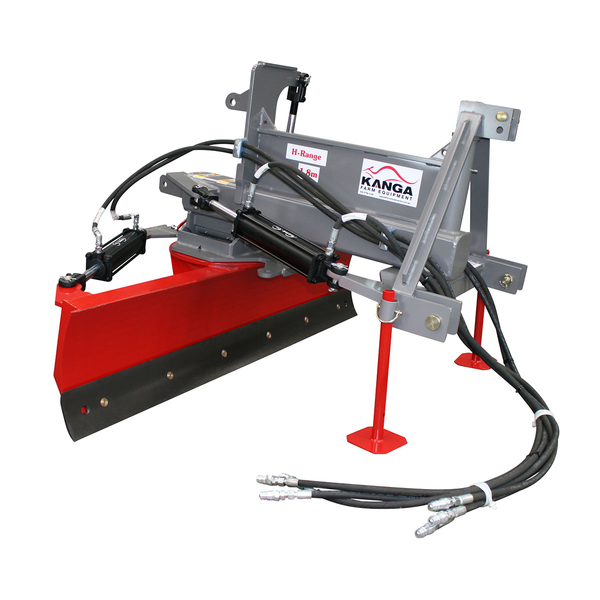

Choose your required width and adjustment type from the options above. Manual models use heavy-duty, lockable coarse-thread ratchet jacks. Hydraulic models use 3-inch hydraulic rams and hoses for angle, offset and tilt adjustment.

Available options

Optional end caps, manual or hydraulic depth wheels, and a diverter valve system are available. If your tractor does not have enough hydraulic remotes to operate each blade function, a diverter valve must be specified when ordering a hydraulic model.

Please confirm your tractor horsepower, linkage category and available hydraulic remotes before ordering so the correct KBH grader blade configuration can be supplied.

FEATURES

  • Australian-made Category 2 tractor grader blade
  • 1.8m and 2.4m width options
  • Manual or hydraulic angle, offset and tilt adjustment
  • 0-30 degree forward and backward blade angle adjustment
  • 0-20 degree left and right blade offset
  • 0-30 degree up and down blade tilt
  • Reversible 375 x 8mm mouldboard
  • Reversible 150 x 12mm boron steel grading edge
  • Reinforced 150 x 150 x 9mm steel headstock
  • Optional end caps, depth wheels and hydraulic diverter valve

Product Details

SPECIFICATIONS

SKU KBH
Brand Farm Implements
Shipping Weight 360.0000kg
Shipping Width 1.800m
Shipping Height 1.200m
Shipping Length 1.800m
Shipping Cubic 3.888000000m3
Unit Of Measure ea
